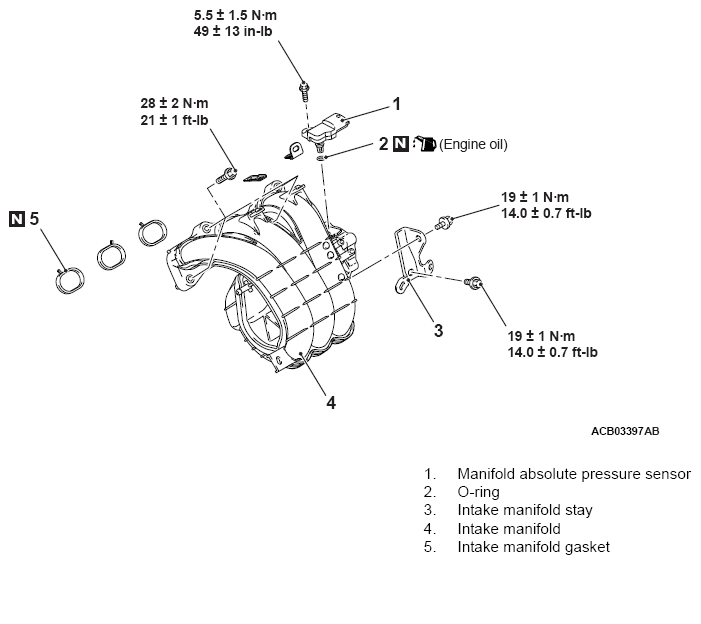

Removal And Installation: Notes
CAUTION:
- When removing or installing the manifold absolute pressure sensor, be careful not to apply impact to the sensor.
- Do not reuse the manifold absolute pressure sensor that has been dropped.
Pre-removal Operation
- Throttle Body Assembly Removal (Refer to THROTTLE BODY ASSEMBLY ).
- Fuel Rail and Fuel Injector Assembly Removal (Refer to INJECTOR ).
Post-installation Operation
- Fuel Rail and Fuel Injector Assembly Installation (Refer to INJECTOR ).
- Throttle Body Assembly Installation (Refer to THROTTLE BODY ASSEMBLY ).
