Removal And Installation: Notes

CAUTION:
  • When removing or installing the camshaft position sensor or crankshaft position sensor, be careful not to apply impact to the sensor.
  • Do not reuse the camshaft position sensor or crankshaft position sensor that has been dropped.

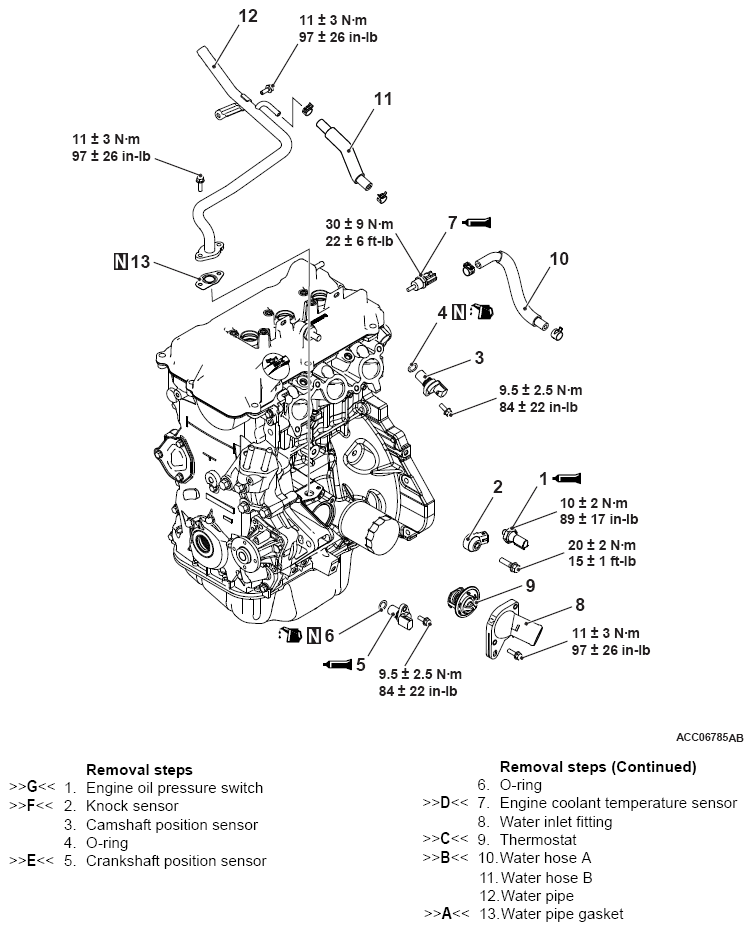

Fig 1: Water Hose And Pipe Components With Torque Specifications
G11277482Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
