Data List Reference Table

WARNING: This page is about a different variant/trim than selected.
Item No. Display on scan tool (M.U.T.-III) Check conditions Normal conditions
1 Primary speed sensor (input)
  • Engine: Idling
  • Transmission range: "N"
  • After warm-up
 More than 0 r/min
2 Secondary speed sensor (input)
  • Engine: Idling
  • Transmission range: "N"
  • After warm-up
 More than 0 r/min
3 Secondary pressure sensor signal
  • Engine: Idling
  • Transmission range: "N"
  • After warm-up
 0.6 - 1.1 V
4 Vehicle speed sensor signal Driving conditions Nearly the same as the speedometer display
5 CVT oil TEMP. sensor signal Ignition switch: "ON" Transmission fluid temperature: Approx. 20°C (68°F) 2.01 - 2.05 V
Transmission fluid temperature: Approx. 80°C (176°F) 0.90 - 0.94 V
6 Power supply voltage Ignition switch: "ON" Battery positive voltage
7 Solenoid drive voltage Ignition switch: "ON" Battery positive voltage
8 Output RPM sensor signal
  • Vehicle speed: Driving at constant speed of 60 km/h (37.3 mph)
  • Transmission range: "D"
  • After warm-up
 2, 000 - 2, 500 r/min
11 Engine revolution Driving conditions Nearly the same as the tachometer display
12 Slip revolution
  • Vehicle speed: Driving at constant speed of 60 km/h (37.3 mph)
  • Transmission range: "D"
 - 15 to + 15 r/min
13 Total change gear ratio
  • Vehicle speed: Driving at constant speed of 60 km/h (37.3 mph)
  • Transmission range: "D"
 0.6 - 1.0
15 Accelerator position Accelerator pedal: Fully closed 0 %
Accelerator pedal: Depressed Opening angle value increases in response to the depression amount of the accelerator pedal.
Accelerator pedal: Fully opened 100%
19 Torque ratio
  • Engine: Idling
  • Transmission range: "P"
 Approx. 1.0
Driving conditions Value depends on driving condition.
20 Secondary pressure
  • Engine: Idling
  • Transmission range: "N"
  • After warm-up
 0.45 - 0.55 MPa (66 - 79 psi)
21 CVT oil temperature Driving after engine has warmed up Gradually increases
26 Pulley change gear ratio
  • Vehicle speed: 0 km/h (0 mph)
  • Engine: Idling
  • Transmission range: "N"
 1.96 - 2.35
32 Gear position (AUX gearbox)
  • Vehicle speed: 0 km/h (0 mph)
  • Engine: Idling
  • Transmission range: "D"
 1st
  • Vehicle speed: Driving at constant speed of 60 km/h (37.3 mph)
  • Transmission range: "D"
 2nd
40 Idle neutral active status Driving conditions Not active
  • After driving the vehicle at 10 km/h (6.2 mph) or more.
  • After warm-up
  • Flat road
  • Engine: Idling
  • Brake pedal: Depress
  • Transmission range: "D"
  • The vehicle stationary
 Active
41 LU solenoid monitor current
  • Vehicle speed: Driving at constant speed of 60 km/h (37.3 mph)
  • Transmission range: "D"
 0.4 - 0.6 A
  • Vehicle speed: 0 km/h (0 mph)
  • Engine: Idling
  • Transmission range: "N"
 Approx. 0 A
43 Line PRS. SOL.monitor current
  • Vehicle speed: 0 km/h (0 mph)
  • Engine: Idling
  • Transmission range: "N"
 0.8 - 1.0 A
45 Primary PRS. SOL.monitor current
  • Vehicle speed: Driving at constant speed of 20 km/h (12.4 mph)
  • Transmission range: "L"
 0.7 - 0.9 A
47 H & R solenoid monitor current
  • Vehicle speed: Driving at constant speed of 60 km/h (37.3 mph)
  • Transmission range: "D"
 0.6 - 0.9 A
  • Vehicle speed: 0 km/h (0 mph)
  • Engine: Idling
  • Transmission range: "N"
 Approx. 1.0 A
49 L/B solenoid monitor current
  • Vehicle speed: Driving at constant speed of 20 km/h (12.4 mph)
  • Transmission range: "L"
 0.2 - 0.6 A
  • Vehicle speed: Driving at constant speed of 60 km/h (37.3 mph)
  • Transmission range: "D"
 Approx. 0 A
51 Indicator P output
  • Ignition switch: "ON"
  • Engine: Stopped
 Transmission range: "P" on
Transmission range: Other than the above off
52 Indicator R output
  • Ignition switch: "ON"
  • Engine: Stopped
 Transmission range: "R" on
Transmission range: Other than the above off
53 Indicator N output
  • Ignition switch: "ON"
  • Engine: Stopped
 Transmission range: "N" on
Transmission range: Other than the above off
54 Indicator D output
  • Ignition switch: "ON"
  • Engine: Stopped
 Transmission range: "D" on
Transmission range: Other than the above off
55 Indicator Ds output
  • Ignition switch: "ON"
  • Engine: Stopped
 Transmission range: "Ds" on
Transmission range: Other than the above off
56 Indicator L output
  • Ignition switch: "ON"
  • Engine: Stopped
 Transmission range: "L" on
Transmission range: Other than the above off
60 Idle switch signal
  • Ignition switch: "ON"
  • Engine: Stopped
 Accelerator pedal: Fully closed on
Accelerator pedal: Depressed off
61 Transmission range switch
  • Ignition switch: "ON"
  • Engine: Stopped
 Transmission range: "P" P
Transmission range: "R" R
Transmission range: "N" N
Transmission range: "D", "Ds" D
Transmission range: "L" L/B
62 Brake switch
  • Ignition switch: "ON"
  • Engine: Stopped
 Brake pedal: Depressed on
Brake pedal: Released off
72 Shift position
  • Ignition switch: "ON"
  • Engine: Stopped
 Transmission range: "P" P, N
Transmission range: "R" R
Transmission range: "N" P, N
Transmission range: "D" D
Transmission range: "Ds" Ds
Transmission range: "L" L
73 Oil pressure switch
  • Vehicle speed: Driving at constant speed of 60 km/h (37.3 mph)
  • Transmission range: "D"
 on
  • Vehicle speed: 0 km/h (0 mph)
  • Engine: Idling
  • Transmission range: "D"
 off
75 Vehicle longitudinal gradient
  • Ignition switch: "ON"
  • Engine: Stopped
  • Flat road
 Approx. 0%
83 Ds switch
  • Ignition switch: "ON"
  • Engine: Stopped
 Transmission range: "Ds", "L" on
Transmission range: Other than the above off
84 Idle neutral control Ignition switch: "ON" Supported

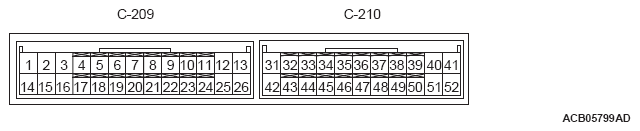

Fig 1: TCM Connector Terminals
G11278265Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
