Logic Flow Charts (Monitor Sequence-Input Open Circuit)

WARNING: This page is about a different variant/trim than selected.

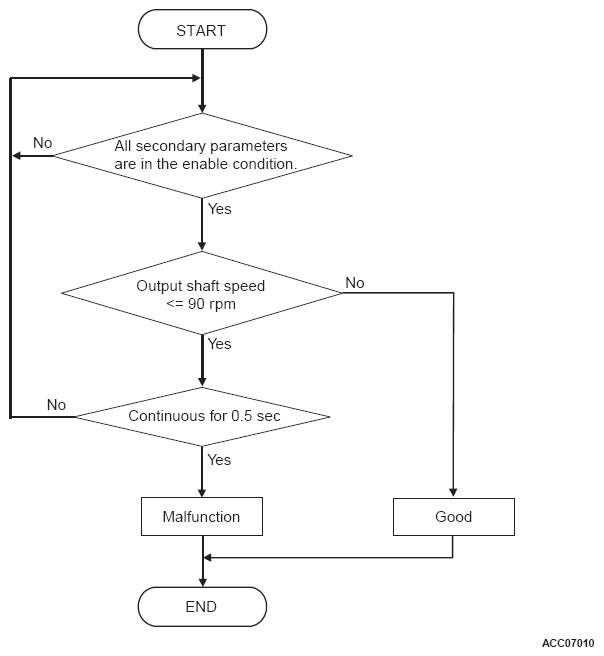

Fig 1: Output Speed Sensor (Input Open Circuit) - DTC Flow Chart
G11278233Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
