Special Tool

WARNING: This page is about a different variant/trim than selected.

Tool number and name	Supersession	Use

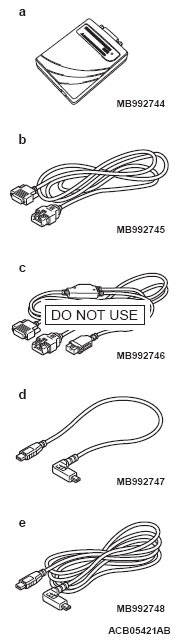

MB992744 MB992745 MB992746 MB992747 MB992748 Vehicle communication interface-Lite (V.C.I.-Lite) V.C.I.-Lite main harness A (for vehicles with CAN communication) V.C.I.-Lite main harness B (for vehicles without CAN communication) V.C.I.-Lite USB cable short V.C.I.-Lite USB cable long	-	CVT system check

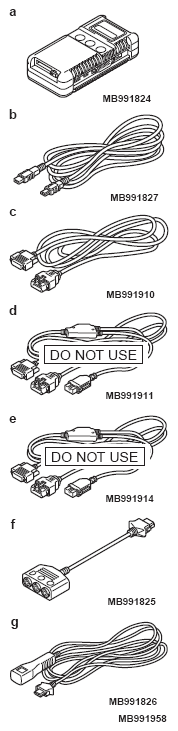

MB991958 MB991824 MB991827 MB991910 MB991911 MB991914 MB991825 MB991826 M.U.T.-III sub assembly Vehicle Communication Interface (V.C.I.) M.U.T.-III USB Cable M.U.T.-III Main Harness A (Vehicles with CAN communication system) M.U.T.-III Main Harness B (Vehicles without CAN communication system) M.U.T.-III Main Harness C (for Chrysler models only) M.U.T.-III Measurement Adapter M.U.T.-III Trigger Harness	MB991824-KIT NOTE: g: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.	CAUTION: For vehicles with CAN communication, use M.U.T.-III main harness A to send simulated vehicle speed. If you connect M.U.T.-III main harness B instead, the CAN communication does not function correctly. CVT system check
MB992006 Extra fine probe	General service tool	Continuity check and voltage measurement at harness wire or connector
MB991895 Engine hanger	Tool not available	When the engine hanger is used: Supporting the engine assembly during removal and installation of the transaxle assembly
MB992906 Engine hanger attachment	Tool not available
MB991928 Engine hanger MB991929 A: Joint (50) x2 MB991930 B: Joint (90) x2 MB991931 C: Joint (140) x2 MB991932 D: Foot (standard) x4 MB991933 E: Foot (short) x2 MB991934 F: Chain and hook assembly	Tool not available
