<<D>> Engine Assembly Supporting

WARNING: This page is about a different variant/trim than selected.

<When engine hanger special tool (MB991928) is used>
1. Assemble the engine hanger special tool (MB991928) (Set the components below to the base hanger).
  - Slide bracket (HI)
  - Foot x 4 (standard) (MB991932)
  - Joint x 2 (50) (MB991929)
2. Set the foot of the special tool MB991928 as shown in the figure.
  NOTE: Adjust the engine hanger balance.
3. Remove the garage jack and then remove the transaxle assembly upper part coupling bolts that have been loosened previously.

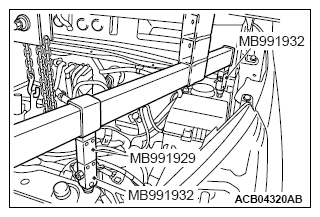

Fig 1: Supporting Engine Assembly Using Special Tools (MB991929, MB991932)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

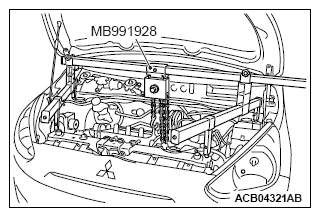

Fig 2: Supporting Engine Assembly Using Special Tools (MB991928)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
<When engine hanger special tool (MB991895) and engine hanger attachment special tool (MB992906) are used> engine hanger special tool (MB991895) and engine hanger attachment special tool (MB992906) are used>>
1. Set the foot of the special tool MB991895 and special tool MB992906 as shown in the figure.
  NOTE: Adjust the engine hanger balance.
2. Remove the garage jack and then remove the transaxle assembly upper part coupling bolts that have been loosened previously.

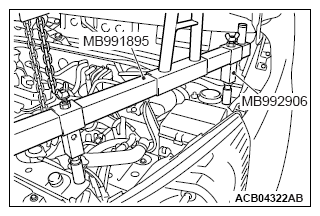

Fig 3: Supporting Engine Assembly Using Special Tools (MB991895, MB992906)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

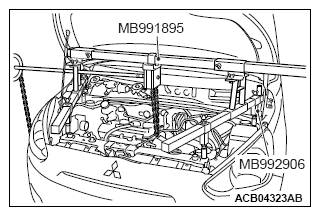

Fig 4: Supporting Engine Assembly Using Special Tools (MB991895)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
