Removal And Installation

WARNING: This page is about a different variant/trim than selected.

Pre-removal and post-installation operation

Instrument Panel Cover Lower Removal and Installation (Refer to INSTRUMENT LOWER PANEL ).

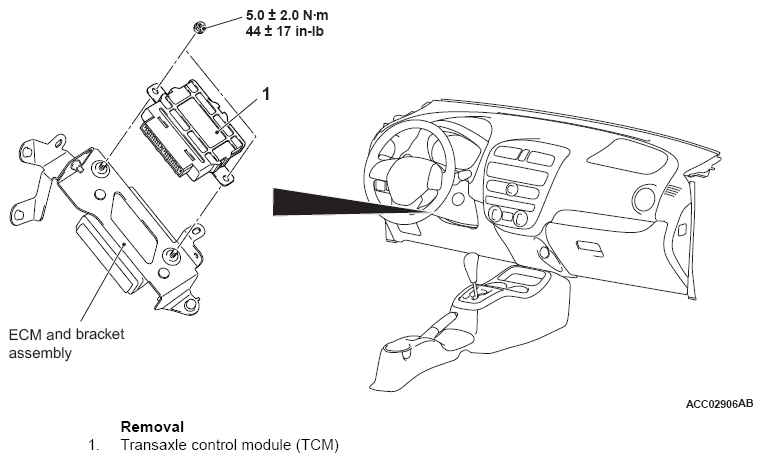

Fig 1: Transaxle Control Module Component With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
