Switch Check
WARNING: This page is about a different variant/trim than selected.

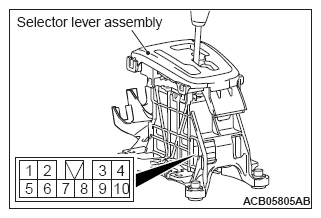

| Item | Transmission range | Terminal number | Continuity |
|---|---|---|---|
| P position detect switch <Vehicles with KOS> | P | 4 - 6 | Open loop |
| Other than above | 4 - 6 | Should be less than 2 ohm | |
| P position detect switch <Vehicles without KOS> | P | 5 - 6 | Open loop |
| Other than above | 5 - 6 | Should be less than 2 ohm | |
| Ds position switch | Ds, L | 8 - 9 | Should be less than 2 ohm |
| Other than above | 8 - 9 | Open loop |
