Electrical Component Locations: Grounding

Fig 1: Grounding Components Location

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Same ground numbers are used in the circuit diagram.

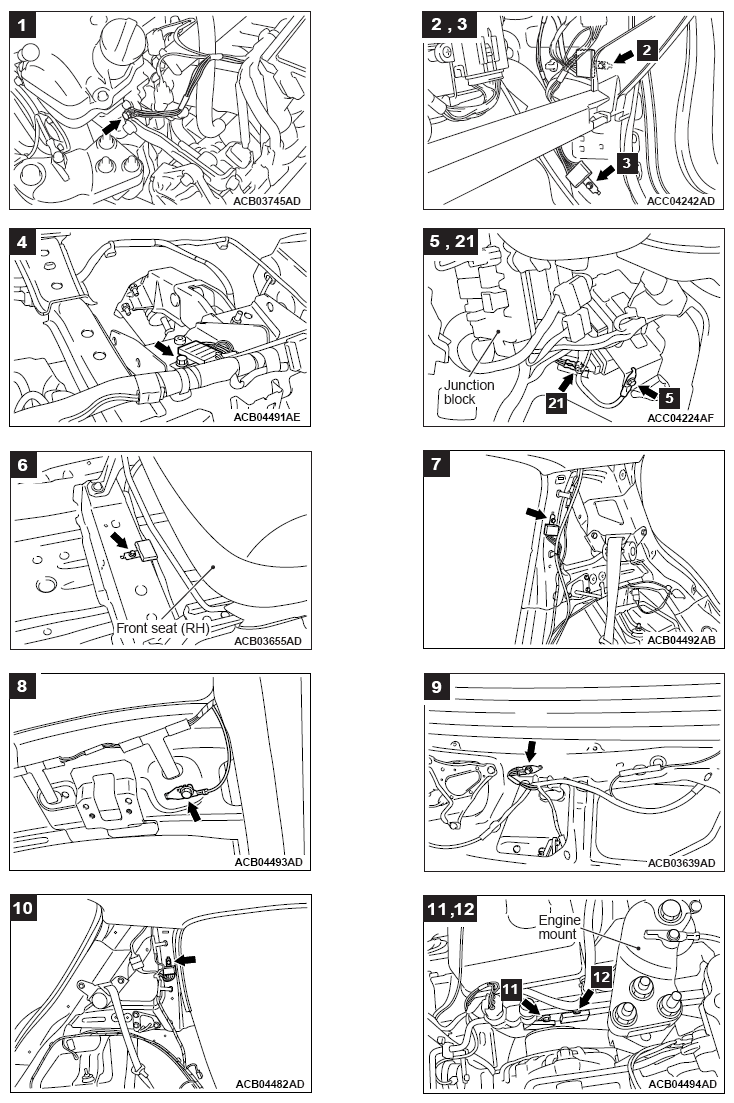

Fig 2: Locating Ground Numbers (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

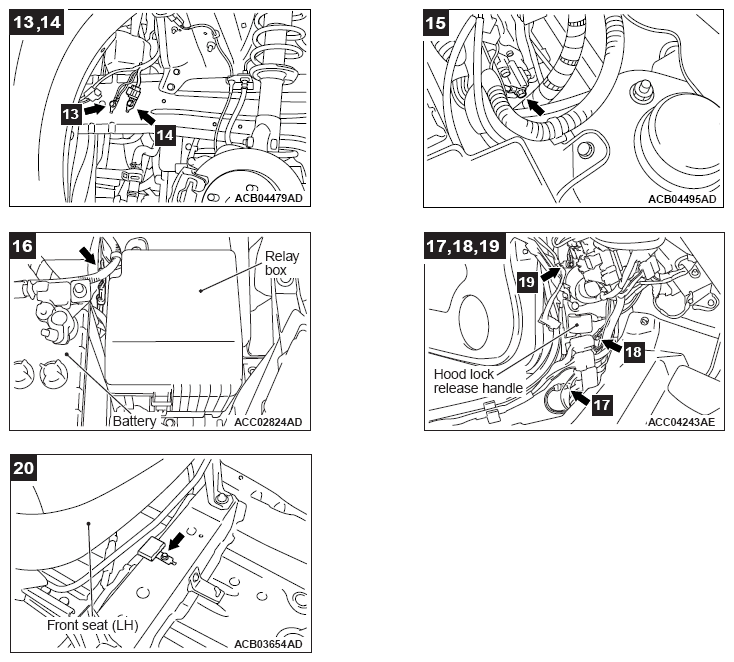

Fig 3: Locating Ground Numbers (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
