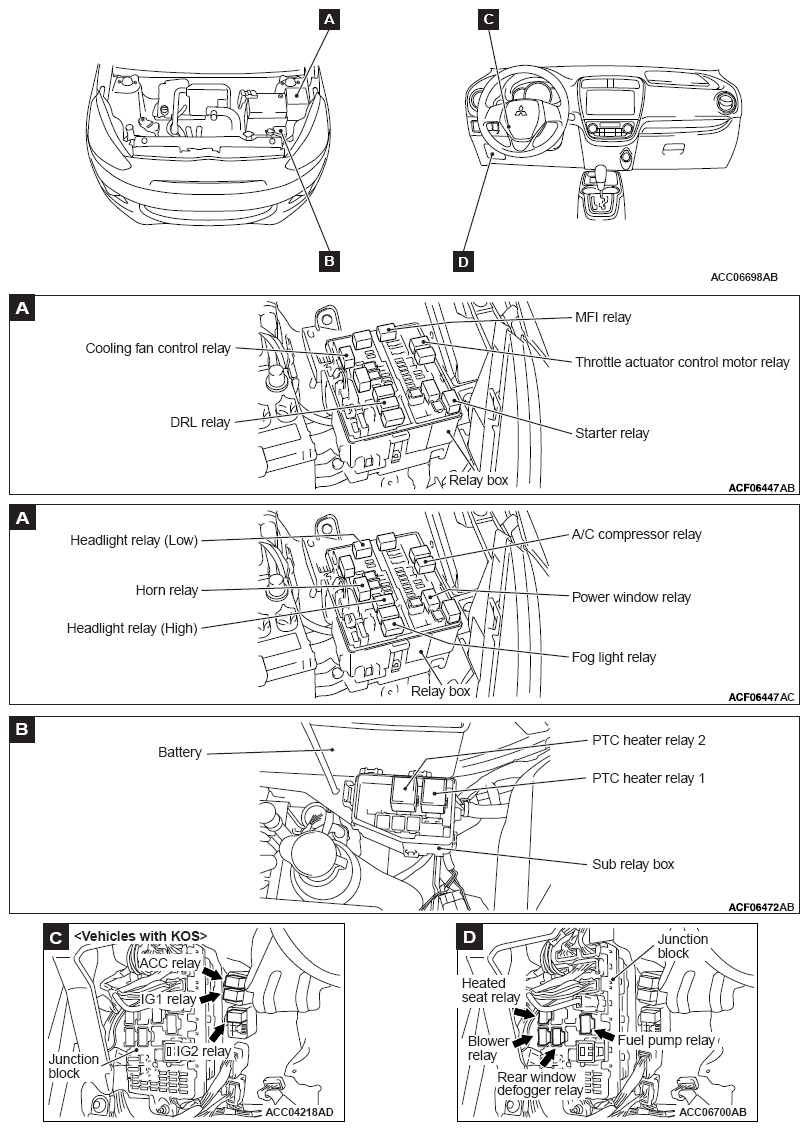

Electrical Component Locations: Relay
| Name | Symbol |
|---|---|
| A/C compressor relay | A |
| ACC relay <Vehicles with KOS> | C |
| Blower relay | D |
| Cooling fan control relay | A |
| DRL relay | A |
| Fog light relay | A |
| Fuel pump relay | D |
| Headlight relay (High) | A |
| Headlight relay (Low) | A |
| Heated seat relay | D |
| Horn relay | A |
| IG1 relay <Vehicles with KOS> | C |
| IG2 relay <Vehicles with KOS> | C |
| MFI relay | A |
| Power window relay | A |
| PTC heater relay 1 | B |
| PTC heater relay 2 | B |
| Rear window defogger relay | D |
| Starter relay | A |
| Throttle actuator control motor relay | A |
