Removal And Installation: Notes

CAUTION: Never overhaul the V.V. T. sprocket assembly.

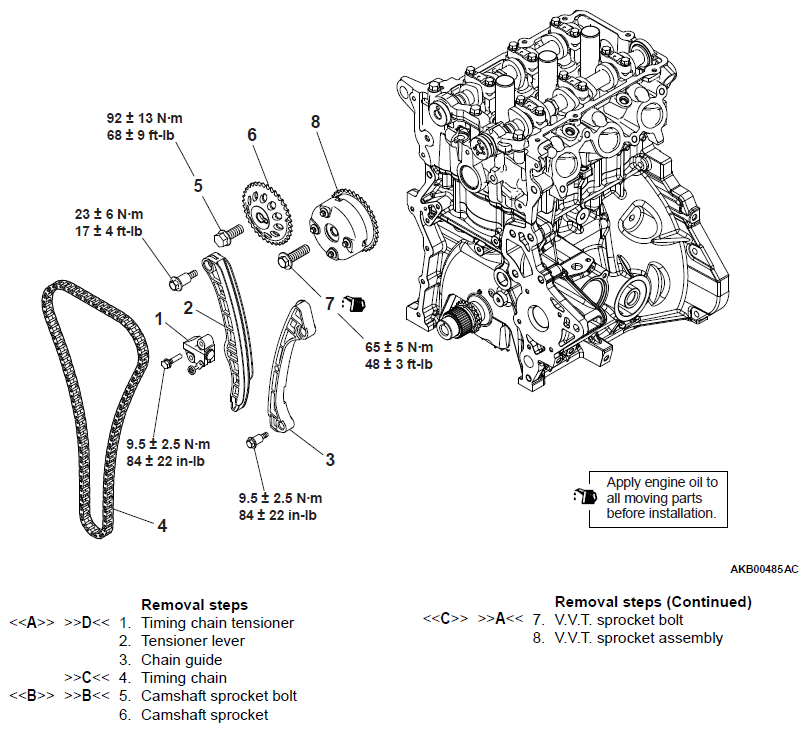

Fig 1: Installation/Removal Of Timing Chain Replacement Components
G11479515Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
