SIRIUS Initialization

  1. Select "SIRIUS Initialization" button on "Service" screen.

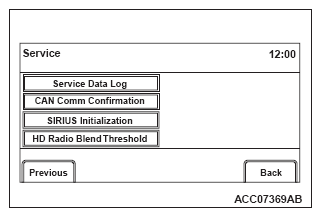

    Fig 1: Screen Display - Service Mode
    G10225668Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. "Restarting SIRIUS." screen will be displayed. When you select "Start" button, the SIRIUS will start again.
    NOTE: After a "Back" button is selected, it will be switched back to "Service" screen.

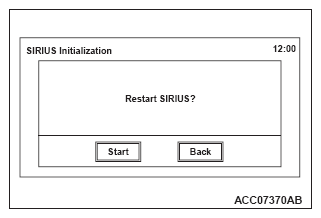

    Fig 2: Screen Display - SIRIUS Initialization
    G10225669Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

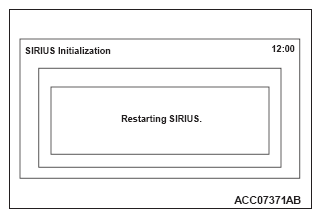

    Fig 3: Screen Display - SIRIUS Initialization (Restarting)
    G10225670Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. When the SIRIUS has completed starting, "Restart of SIRIUS completed" will be displayed.

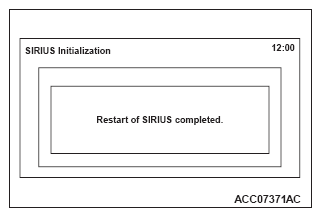

    Fig 4: Screen Display - SIRIUS Initialization (Restart Completed)
    G10225671Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
