Rotary Switch Check

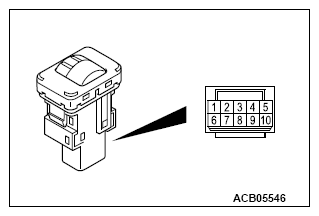

Fig 1: Checking Headlight Leveling Switch Connector Terminals
G10225541Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Measured terminals Rotary switch position Resistance value ohms
8 - 9 0 750
1 1, 110
2 1, 470
3 1, 830
4 2, 190
8 - 10 0, 1, 2, 3, 4 2, 810
