Update vehicle information

  1. Select "Update vehicle information" on "Service" screen.
    Fig 1: Screen Display - Update Vehicle Information On Service
    G09672239Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. "Update Vehicle INFO" screen will be displayed.
  3. Select "Upload" button.
    NOTE: If no update file is stored in the SD card, this button will not be active.

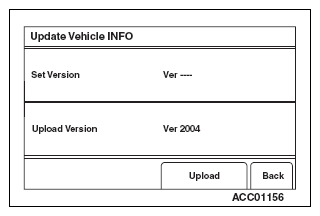

    Fig 2: Screen Display - Update Vehicle INFO
    G09672244Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. Select "Yes" button to upload the file.

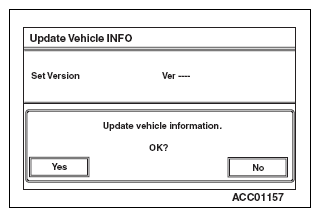

    Fig 3: Screen Display - Yes Button To Upload File (1 Of 2)
    G09672245Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

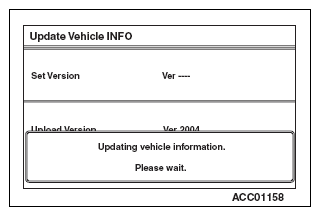

    Fig 4: Screen Display - Yes Button To Upload File (2 Of 2)
    G09672246Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  5. After the upload is complete, restart the navigation system.

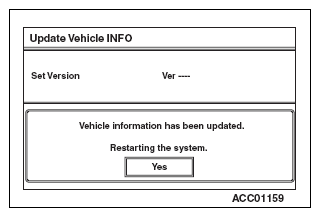

    Fig 5: Screen Display - After Upload Complete, Restart Navigation System
    G09672247Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
