CAN Function Check

Select "CAN Function Check" on "Service" screen.

Fig 1: Screen Display - CAN Function Check On Service
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Select "CAN Communication Confirmation" on "CAN Function Check" screen.

Fig 2: Screen Display - CAN Communication Confirmation On CAN Function Check
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Select "List Of Connection Equipment", "Version Indication" or "CAN BOX Memory Data Indication" from "CAN Communication Confirmation" screen.

Fig 3: Screen Display - List Of Connection Equipment
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

If "List Of Connection Equipment" is selected on "CAN Communication Confirmation" screen, the system will determine which equipment is installed according to the connected equipment reference table. Then the equipment which are connected to the CAN box unit will be displayed.

Fig 4: Screen Display - List Of Connection Equipment On CAN Communication Confirmation

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Screen indication	Equipment
HVAC	A/C-ECU
FCM	FCM/LDW/AHB-ECU
OSS	OSS-ECU
CCN	Combination meter
ETG	Electric liftgate control unit

If "Version Indication" is selected on "CAN Communication Confirmation" screen, the version for each item is displayed.

Fig 5: Screen Display - Version Indication On CAN Communication Confirmation
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
If "CAN BOX Memory Data Indication" is selected on "CAN Communication Confirmation" screen, "CAN BOX Memory Data Indication" will be displayed.
If any item is selected on "CAN BOX Memory Data Indication" screen, its relevant information is displayed.

Fig 6: Screen Display - CAN Box Memory Data Indication On CAN Communication Confirmation
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

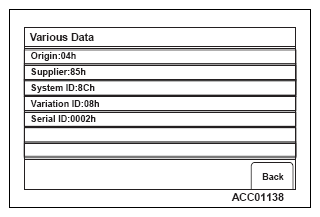

- Various Data

  Fig 7: Screen Display - Various Data
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

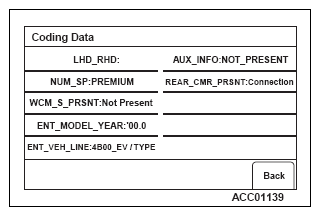

- Coding Data

  Fig 8: Screen Display - Coding Data
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
- Chrono Stack

  Fig 9: Screen Display - Chrono Stack
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
