Camera Setting

Select "Camera Setting" button on "Service" screen.

Fig 1: Screen Display - Camera Setting Button On Service
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

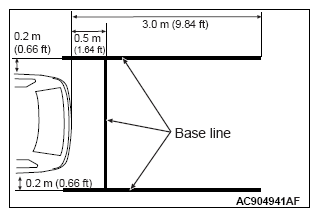

Draw base lines 0.5 m (1.64 ft) behind the vehicle and width +0.4 m (1.31 ft) [+0.2 m (0.66 ft) each for right and left] and align the guide line over the base lines.

Fig 2: Screen Display - Draw Base Lines Behind Vehicle (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

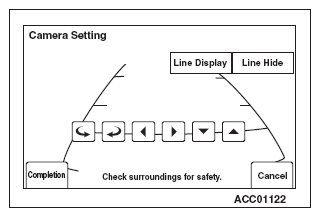

Fig 3: Screen Display - Draw Base Lines Behind Vehicle (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
