Communications & Connection Check

Select "Communications & Connection Check" button on "Unit Diagnosis" screen.

Fig 1: Screen Display - Communications & Connection Check Button On Unit Diagnosis (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Screen Display - Communications & Connection Check Button On Unit Diagnosis (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

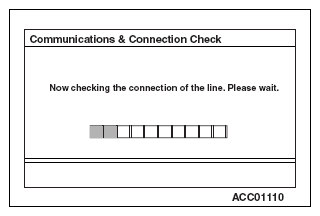

A network and connect line check will be initiated. The "Communications & Connection Check" screen will display how the check is in progress.
When the network and connect line check is finished, the screen will change to "Network/Connect Line Result" to show the check results.

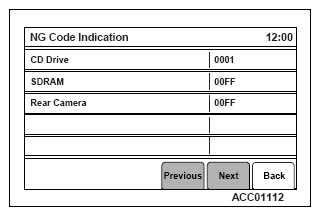

NOTE: If there is "NG" or "N/A" as the check results, select "NG" on the "Network/Connect Line Result" screen. Then "NG code Indication" screen will show the NG code.

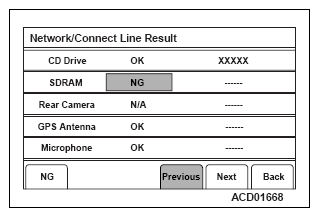

Fig 3: Screen Display - NG On Network/Connect Line Result

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

4. If "Back" is selected on "Network/Connect Line Result", the screen will return to "Unit Diagnosis" screen.

Fig 4: Screen Display - Back On Network/Connect Line Result

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
