GPS Time Setting

  1. "GPS Time" screen will be displayed by selecting "GPS Time Setting" button on "Service" screen.
  2. Select "Set" button.

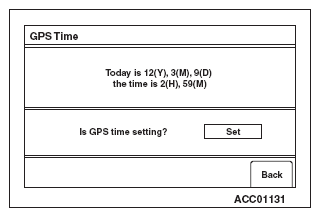

    Fig 1: Screen Display - GPS Time Setting Button On Service
    G09672220Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. Set your local time on "GPS Time Setting" screen, and then select "Set" button.

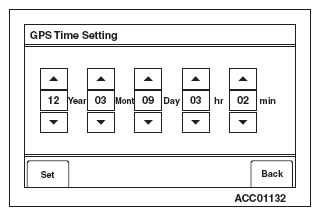

    Fig 2: Screen Display - Set Your Local Time On GPS Time Setting
    G09672221Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
