Key Check

Select "Key Check" button on "Unit Diagnosis" screen.

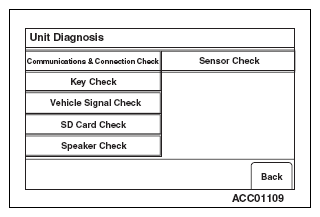

Fig 1: Screen Display - Key Check Button On Unit Diagnosis
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
When a hard key on the multivision display or a steering wheel remote control switch is pressed on "Key Check" screen, its name will be displayed.
NOTE: The switch name will be displayed while the switch is being pressed.

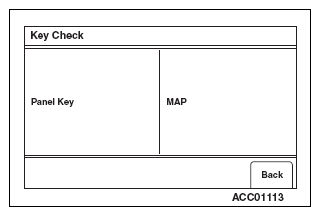

Fig 2: Screen Display - Steering Wheel Remote Control Switch On Key Check
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
