Monitor Check

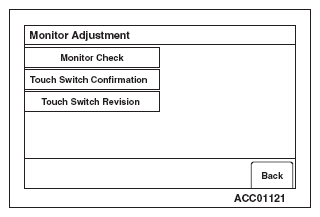

  1. Select "Monitor Check" button on "Monitor Adjustment" screen.
    Fig 1: Screen Display - Monitor Check Button On Monitor Adjustment
    G09672191Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. 16-gradient grayscale pattern are displayed.
    Fig 2: Screen Display - 16-Gradient Grayscale Pattern
    G05385465Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  3. By touching the grayscale screen, it will be switched to a full-scale white screen.
    Fig 3: Screen Display - Switched To Full-Scale White
    G07034915Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. By touching the full-scale white screen, it will be switched to a eight color bars.
    Fig 4: Screen Display - Switched To Eight Color Bars
    G07034912Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

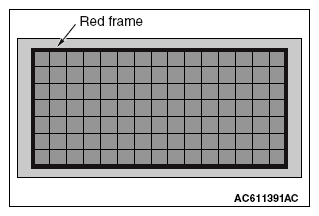

  5. By touching the eight color bars, it will be switched to a cross-hatch pattern. (Check whether the full-scale red frame is not misaligned)
    Fig 5: Screen Display - Switched To Cross-Hatch Pattern
    G09672117Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  6. By touching the cross-hatch screen, it will be switched to a monocolor vertical stripe screen.
    Fig 6: Screen Display - Switched To Monocolor Vertical Stripe
    G09672118Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  7. By touching the monocolor vertical stripe screen, it will be switched to a full-scale black screen.
    Fig 7: Screen Display - Switched To Full-Scale Black
    G07034916Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  8. By touching the full-scale black screen, it will be switched to a full-scale red screen.
    Fig 8: Screen Display - Switched To Full-Scale Red
    G05385469Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  9. By touching the full-scale red screen, it will be switched to a full-scale green screen.
    Fig 9: Screen Display - Switched To Full-Scale Green
    G07048986Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  10. By touching the full-scale green screen, it will be switched to a full-scale blue screen.
  11. By touching the full-scale blue screen, it will be switched back to "Monitor Adjustment" screen.
    Fig 10: Screen Display - Full-Scale Blue, Switched Back To Monitor Adjustment
    G07048987Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
