Present Position Revision

Select "Present Position Revision" button on "Service" screen.

Fig 1: Screen Display - Present Position Revision Button On Service
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Adjust the position, and then press "Set" button. Then adjust the direction, and then press "Set" button.
NOTE: If a road type must be selected, select "Highway" or "Regular Road".

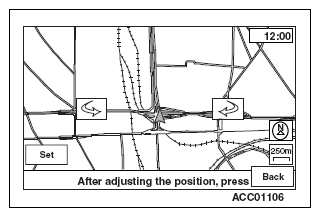

Fig 2: Screen Display - Adjust Position And Press Set Button, Highway, Regular Road (1 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

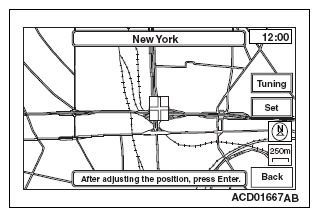

Fig 3: Screen Display - Adjust Position And Press Set Button, Highway, Regular Road (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

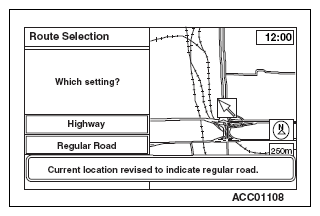

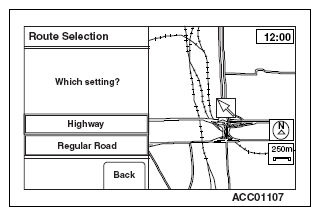

Fig 4: Screen Display - Adjust Position And Press Set Button, Highway, Regular Road (3 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
A current location will be displayed on "Current location revised." screen.

Fig 5: Screen Display - Current Location Revised
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
