SD Card Check

Select "SD Card Check" on "Unit Diagnosis" screen.

Fig 1: Screen Display - SD Card Check On Unit Diagnosis
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

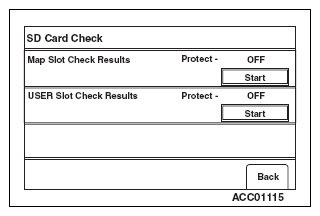

When "Start" button of "Map Slot Check Results" is pressed on "SD Card Check" screen, the SD card which is inserted in the map slot will be checked.
NOTE: When "Start" button is pressed on "USER slot Check Results", the SD card which is inserted in the USER slot will be checked.

Fig 2: Screen Display - Start Button Of Map Slot Check Results On SD Card Check
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Check result will be displayed.

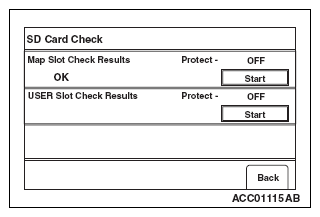

- If the check result is OK.

  Fig 3: Screen Display - Start Button Of Map Slot Check Results On SD Card Check
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

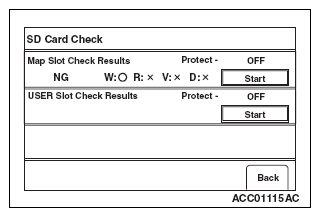

- If the check result is not OK.
  W: Writing check of a dummy file

  R: Reading check of a dummy file

  V: Reference check of a dummy file

  D: Deletion of a dummy file

  Fig 4: Screen Display - Start Button Of Map Slot Check Results On SD Card Check
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

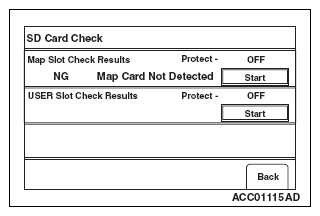

- If no SD card is detected:

  Fig 5: Screen Display - Start Button Of Map Slot Check Results On SD Card Check
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
