Sensor Check

Select "Sensor Check" button on "Unit Diagnosis" screen.

Fig 1: Screen Display - Sensor Check Button On Unit Diagnosis
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Press "Start" button on "Sensor Check" screen, and then follow instructions on the screen to operate the vehicle.

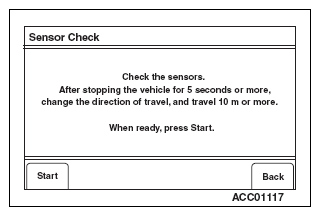

Fig 2: Screen Display - Start Button On Sensor Check (1 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

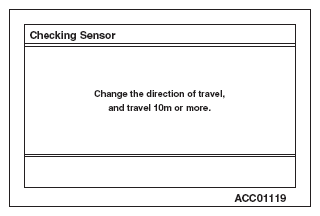

Fig 3: Screen Display - Start Button On Sensor Check (2 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

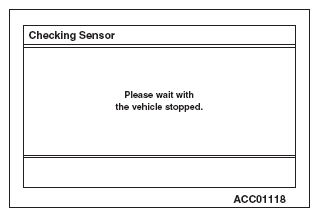

Fig 4: Screen Display - Start Button On Sensor Check (3 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

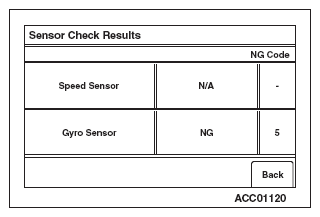

Fig 5: Screen Display - Start Button On Sensor Check (4 Of 4)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Check result will be displayed. If any of the check results is not OK, a NG code will be displayed.

Sensor classification	NG Code No.	Error items
Gyro sensor	1	Offset error while the vehicle is stationary (lower limit error)
	2	Offset error while the vehicle is stationary (upper limit error)
	5	Output error during driving
Speed sensor	6	Output error while the vehicle is stationary
