Telematics Log

1. Select "Telematics Log" button on "Log Function" screen.

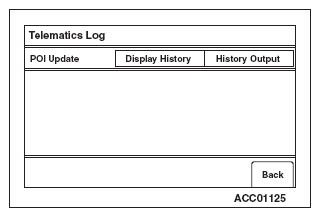

   Fig 1: Screen Display - Telematics Log Button On Log Function

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Select "Display History" or "History Output" from the POI update items on "Telematics Log" screen.
   NOTE: If no update history is stored, the icon above will not be active.

Fig 2: Screen Display - History Output From POI Update On Telematics Log

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

"Display History" is selected:

• The last 30 items in the POI update history will be displayed.

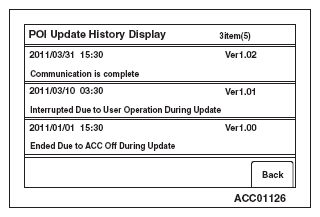

Fig 3: Screen Display - POI Update History

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

"History Output" is selected:

• Write the POI update history to the SD card which is inserted in the USER slot.

Fig 4: Screen Display - POI Update History To SD Card In User Slot

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
