Vehicle Signal Check

Select "Vehicle Signal Check" on "Unit Diagnosis" screen.

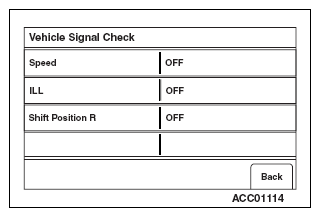

Fig 1: Screen Display - Vehicle Signal Check On Unit Diagnosis
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
The current status of vehicle signal will be displayed.
- "Speed": "ON" when the vehicle speed is 5 km/h or more, and "OFF" when the vehicle speed is 3 km/h or less.
- "ILL": "ON" when the lighting switch is on (the taillights or the headlights are ON), and "OFF" when the taillights or the headlights are OFF.
- "Shift Position R": "ON" when the selector lever is at R position, and "OFF" when it is at the other position.

Fig 2: Screen Display - Shift Position R ON

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
