Periodic Reminder Schedule Set

The service reminder schedule can be changed.

NOTE: In addition to the operation of scan tool (M.U.T.-III), the schedule can be changed by operating the meter information switch on the combination meter. Refer to HOW TO CANCEL THE SERVICE REMINDER WARNING .

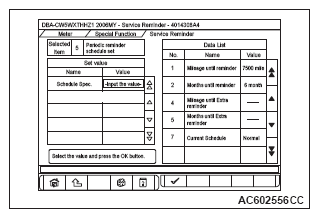

Fig 1: Screen Display - Periodic Reminder Schedule Set

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

On the "Service Reminder" screen, select "5 Periodic reminder schedule set."
NOTE: The screen indicates that the current schedule (No. 7 in the data list) has been set to "Normal."

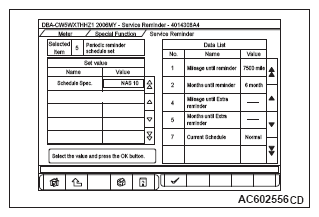

Fig 2: Screen Display - Service Reminder
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Set the schedule to be changed from "Set value."
Press the "OK" button.

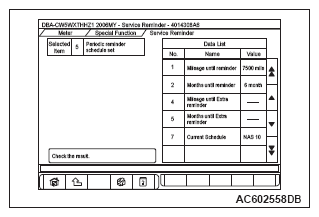

Fig 3: Screen Display - Schedule To Changed From Set Value
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Screen Display - Current Schedule (No. 7 In Data List)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
The schedule is changed.
NOTE: The screen indicates that the current schedule (No. 7 in the data list) has been changed to "NAS 10."
