REMOVAL AND INSTALLATION <Vehicles with S-AWC>: Notes

Pre-removal operation  Engine Room Under Cover Front B Removal (Refer to REMOVAL AND INSTALLATION .) Transmission Fluid Draining (Refer to TRANSMISSION FLUID CHANGE .) Transfer Oil Draining (Refer to TRANSFER OIL CHANGE (AWD) .) Front Exhaust Pipe Removal (Refer to EXHAUST PIPE AND MUFFLER .) Propeller Shaft Removal (Refer to PROPELLER SHAFT .) Drive Shaft (RH) Removal (Refer to DRIVE SHAFT ASSEMBLY .)

Post-installation operation  Engine Room Under Cover Front B Installation (Refer to REMOVAL AND INSTALLATION .) Transmission Fluid Refilling (Refer to TRANSMISSION FLUID CHANGE .) Transmission Fluid Check (Refer to ESSENTIAL SERVICE .) Transfer Oil Refilling (Refer to TRANSFER OIL CHANGE (AWD) ). Transfer Oil Check (Refer to TRANSFER OIL CHECK (AWD) ). Front Exhaust Pipe Installation (Refer to EXHAUST PIPE AND MUFFLER .) Propeller Shaft Installation (Refer to PROPELLER SHAFT .) Drive Shaft (RH) Installation (Refer to DRIVE SHAFT ASSEMBLY .)

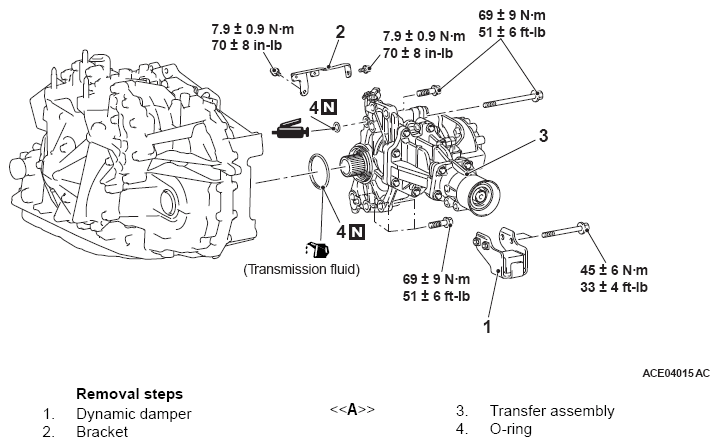

Fig 1: Removing/Installing Transfer Assembly (Vehicles With S-AWC) Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
