Removal And Installation: Notes

Pre-removal and Post-installation Operation

Wiper/Washer switch, Refer to COLUMN SWITCH .

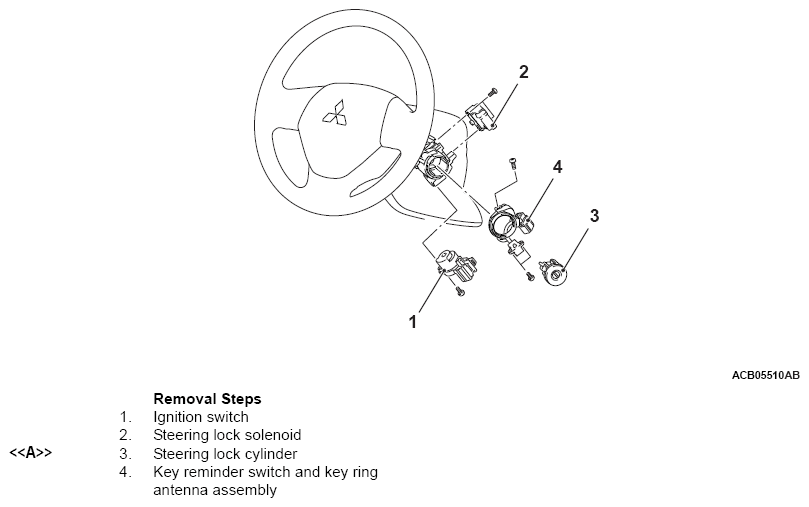

Fig 1: Removing/Installing Ignition Switch Components

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: Other than the single unit supplying of key reminder switch and key ring antenna assembly as well as of ignition switch, they are also supplied as the mechanical steering lock assembly (mechanical steering lock, steering lock bracket, steering lock bolt, key reminder switch and key ring antenna assembly, and ignition switch are supplied as a set).

For how to remove the mechanical steering lock, steering lock bracket, and steering lock bolt, Refer to INSPECTION<Vehicles without steering lock> or INSPECTION<Vehicles with steering lock>.
