DISASSEMBLY AND REASSEMBLY <2.4L Engine>: Notes

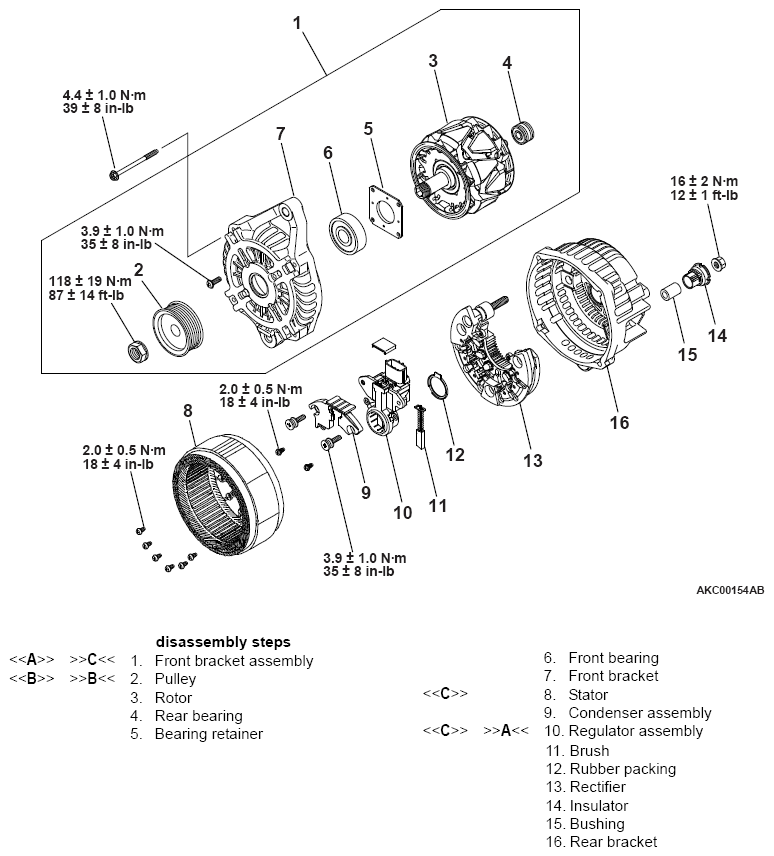

Fig 1: Disassembling/Assembling Generator Assembly Components With Torque Specifications (2.4L Engine)
G12119318Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
