>>A<< Regulator Assembly Installation

After installing the regulator assembly, insert a piece of wire through the hole in the rear bracket while pressing the brush to keep the brush against movement.

NOTE: Unless inserting the wire to fix the brush, the rotor installation is difficult.

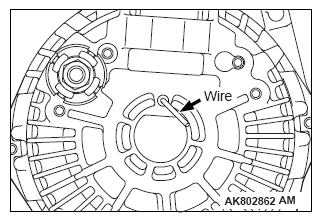

Fig 1: Inserting Piece Of Wire Through Hole In Rear Bracket

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: Inserting Wire To Brush

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
