<<C>> Stator/Regulator Assembly Removal
CAUTION:
- Use a 180 - 250 W soldering iron, and finish unsoldering within four seconds. Diodes will be damaged by heat if unsoldering time is too long.
- Avoid applying undue force to the diode leads.
- Unsolder the stator leads from the main diode of the rectifier assembly when the stator is removed.

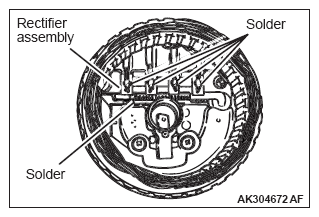

- When removing the rectifier assembly from the regulator assembly, undo the soldered points on the rectifier assembly.
