DISASSEMBLY AND REASSEMBLY <3.0 L Engine>: Notes

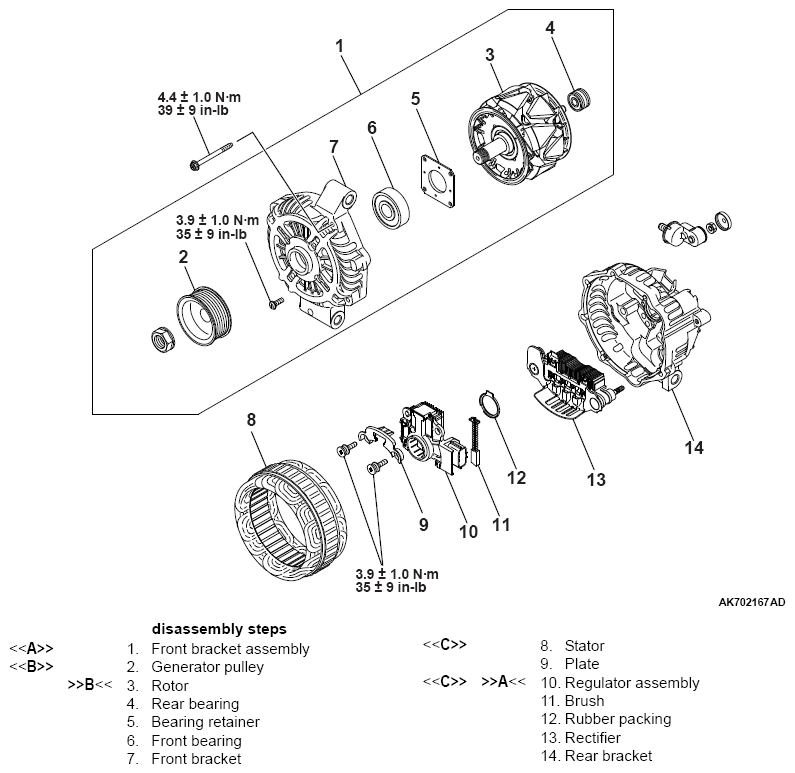

Fig 1: Disassembling/Assembling Generator Assembly Components With Torque Specifications (3.0L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
