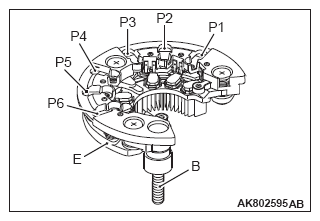

Rectifier Assembly
Use the analog type tester to make sure the electrical continuity of each diode meets the table.
Unless the electrical continuity of each diode meets the table. replace the rectifier.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
| (-) side |
(+) side |
Electrical continuity |
| E |
P1, P2, P3, P4, P5, P6 |
Yes |
| B |
No |
| P1, P2, P3, P4, P5, P6 |
E |
No |
| B |
Yes |
