REMOVAL AND INSTALLATION <2.4L Engine>: Notes

Pre-removal Operation

Engine Room Under Cover Front A, B and Engine Room Side Cover (RH) Removal (Refer to REMOVAL AND INSTALLATION ).
Drive Belt Removal (Refer to CRANKSHAFT PULLEY ).

Post-installation Operation

Drive Belt Installation (Refer to CRANKSHAFT PULLEY ).
Drive Belt Tension Check (Refer to DRIVE BELT TENSION CHECK ).
Engine Room Under Cover Front A, B and Engine Room Side Cover (RH) Installation (Refer to REMOVAL AND INSTALLATION ).

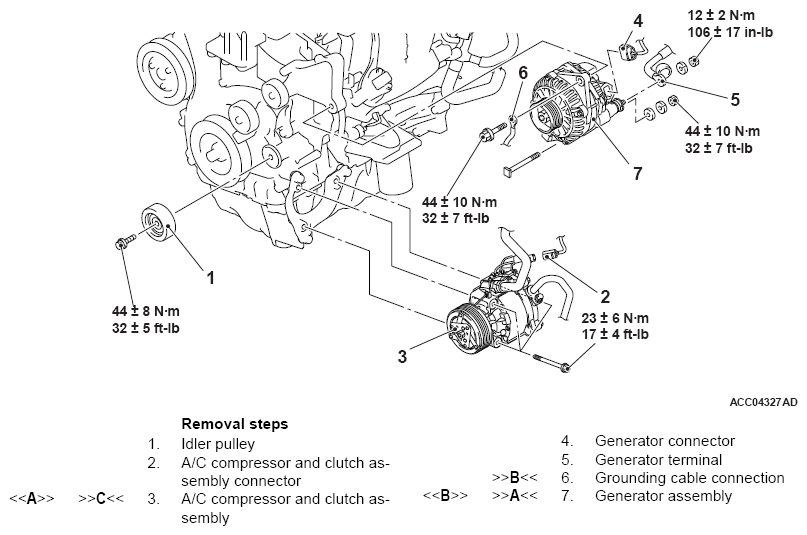

Fig 1: Removing/Installing Generator Assembly Components With Torque Specifications (2.4L Engine)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
