Removal And Installation: Notes

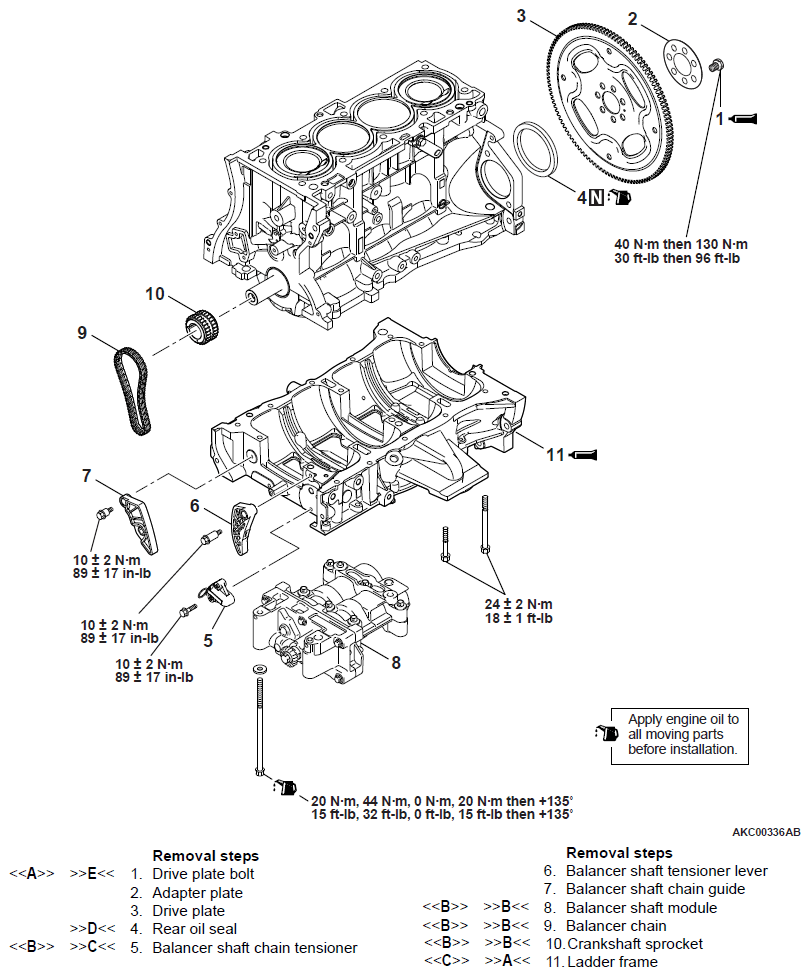

Fig 1: Removing/Installing Balancer Chain Components With Torque Specifications
G12117792Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
