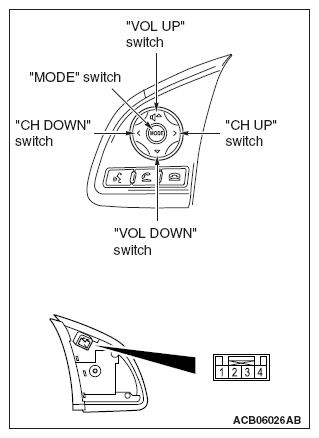

Steering Wheel Audio Remote Control Switch Check: Notes
| Switch Position |
Tester Connection |
Measurement Value |
| "MODE" switch pushed |
1 - 2 |
Approximately 270 Ω |
| "CH UP" switch pushed |
Approximately 740 Ω |
| "CH DOWN" switch pushed |
Approximately 1.3 kΩ |
| "VOL UP" switch pushed |
Approximately 2.1 kΩ |
| "VOL DOWN" switch pushed |
Approximately 3.1 kΩ |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
