A/T Control Component Layout

Name	Symbol	Name	Symbol
A/T control relay	B	Output shaft speed sensor	A
A/T control solenoid valve assembly connector	E	Paddle shift switch	G
AWC-ECU <Vehicles with S-AWC>	F	Selector lever assembly (incorporating shift lock solenoid)	I
Data link connector	H	Transaxle control module (TCM)	F
Input shaft speed sensor	C	Transmission range switch	D

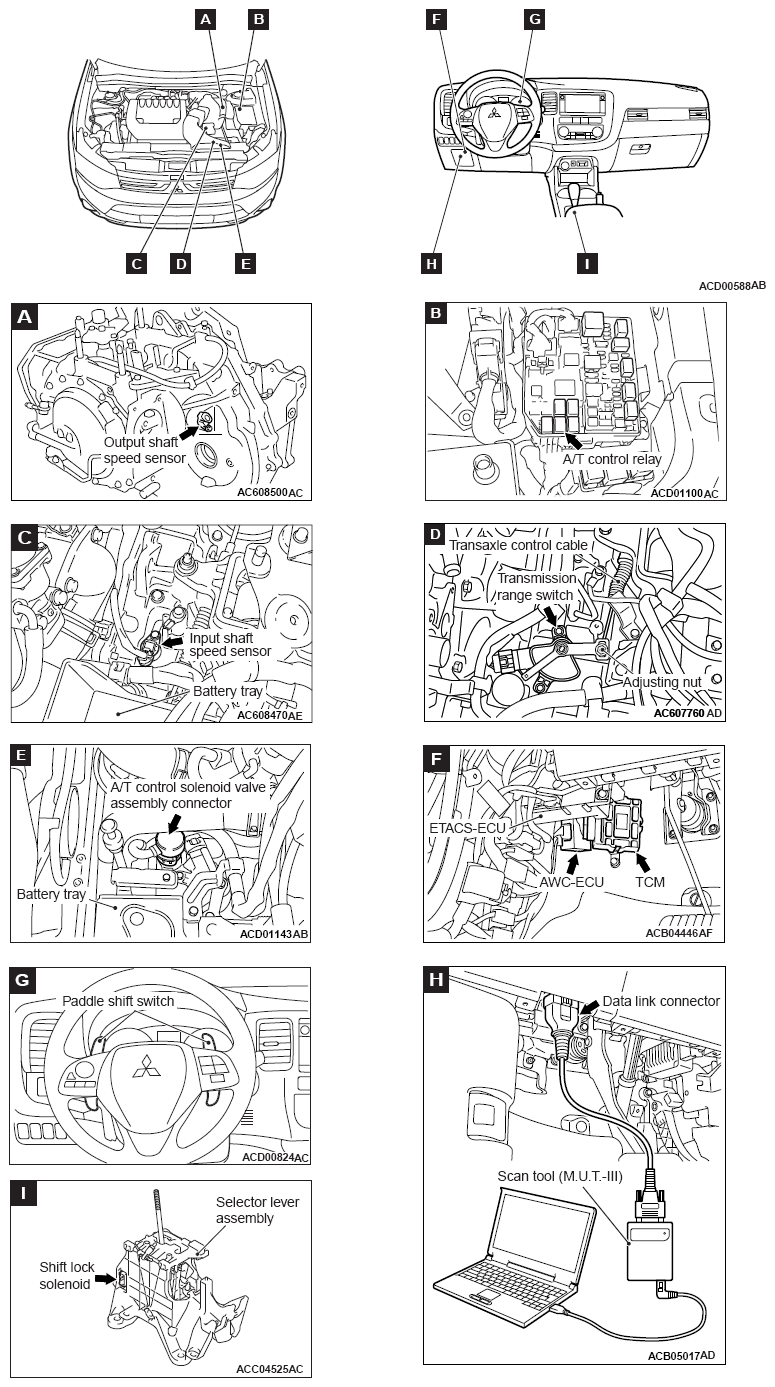

Fig 1: A/T Control Component Location (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 2: A/T Control Component Location (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

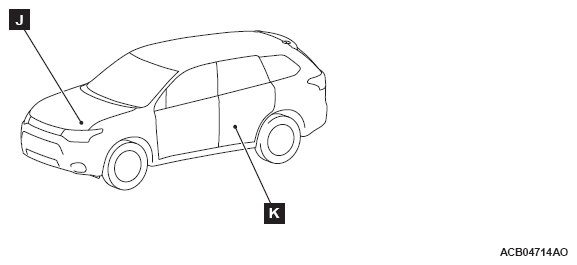

Name	Symbol	Name	Symbol
Electronic control coupling (front) <Vehicles with S-AWC>	J	Electronic control coupling (center) <Vehicles with S-AWC>	K

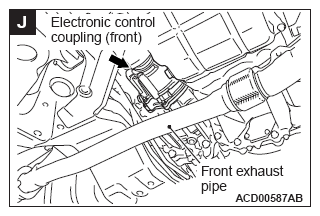

Fig 3: Locating Electronic Control Coupling (Front)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

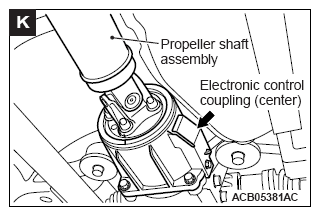

Fig 4: Locating Electronic Control Coupling (Center)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

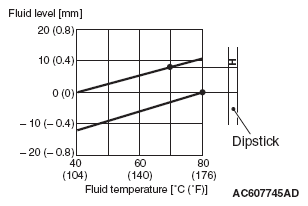

Fig 5: Transmission Fluid Temperature Graph

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
