>>B<< Transaxle Control Cable (Transaxle Side) Installation

1. Move the selector lever and manual control lever to the "N" position.
2. Use the adjusting nut to tighten the transaxle control cable to the specified torque.

Tightening torque: 9.5 ± 3.5 N.m (84 ± 30 in-lb)

Fig 1: Moving Selector Lever And Manual Control Lever To N Position

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

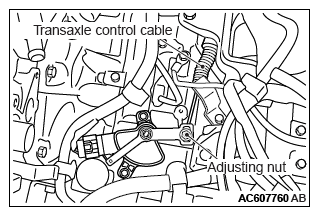

Fig 2: Locating Transaxle Control Cable With Adjusting Nut

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
