Disassembly And Assembly: Assembly

CAUTION:

Install D-rings onto the 2-6 brake piston.

Fig 1: Installing D-Rings Onto 2-6 Brake Piston
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: Apply transmission fluid to the 2-6 brake piston before installation.
Install the 2-6 brake piston onto the side cover.

Fig 2: Installing 2-6 Brake Piston Onto Side Cover
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Install the spring retainer assembly onto the 2-6 brake piston.

Fig 3: Installing Spring Retainer Assembly Onto 2-6 Brake Piston
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

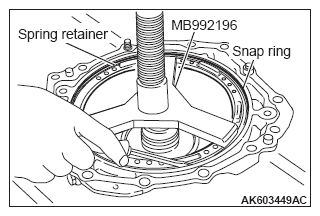

CAUTION: Ensure that the special tool MB992196 is correctly set, directly above the return springs of the spring retainer assembly.
Using the special tool MB992196, install the snap ring while pushing the spring retainer assembly.

Fig 4: Installing Snap Ring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CAUTION:
- Never reuse the seal rings.
- Apply vaseline to the seal rings before installation.
Install seal rings onto the side cover.

Fig 5: Installing Seal Rings Onto Side Cover

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
