DTC 15: Cruise Control Switch System: Notes

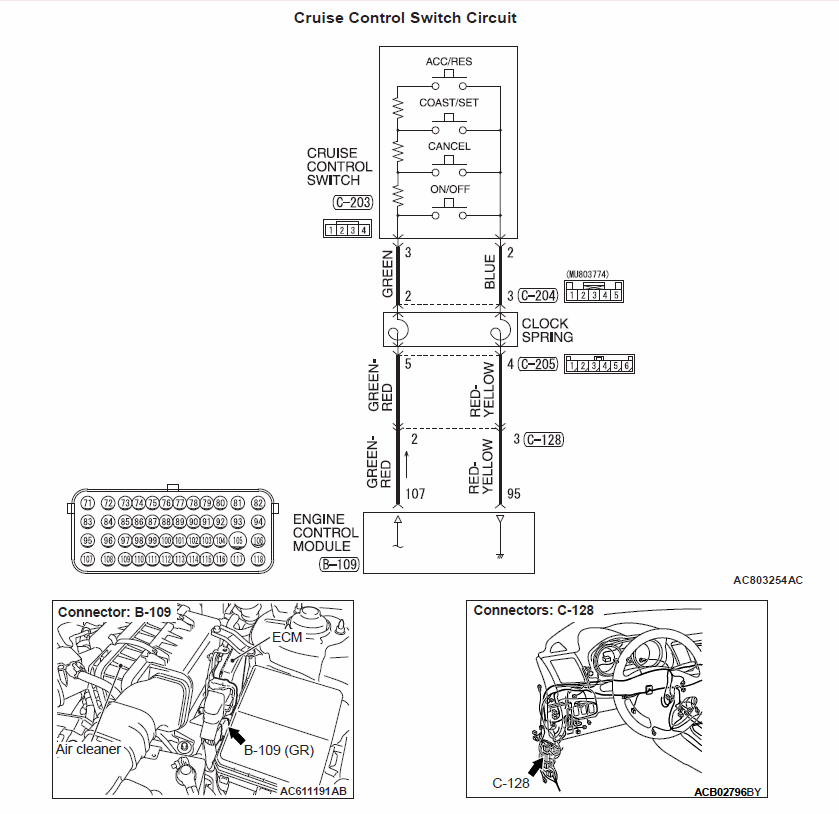

Fig 1: Cruise Control Switch System Circuit Diagram (1 Of 2)
G00577045Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

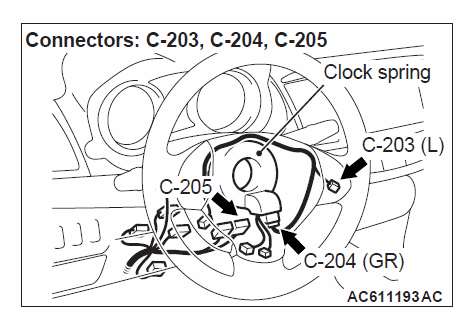

Fig 2: Cruise Control Switch System Circuit Diagram (2 Of 2)
G00577046Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
