Lighting Control Sensor Removal And Installation: Notes

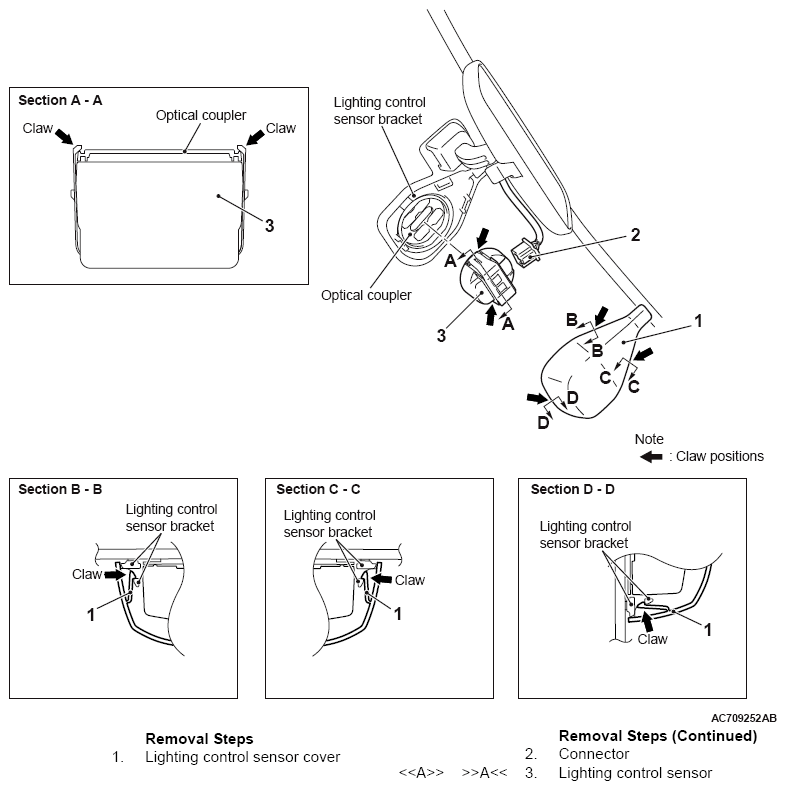

Fig 1: Removing/Installing Lighting Control Sensor Components
G10232722Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
