Communications & Connection Check

Select "COMMUNICATIONS & CONNECTION CHECK " button on "Unit Diagnosis" screen.

Fig 1: Display - Communications And Connection Check Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
A network and connect line check will be initiated. The "COMMUNICATIONS & CONNECTION CHECK " screen will display how the check is in progress.

Fig 2: Display - Communications And Connection Check Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
When the network and connect line check is finished, the screen will change to "Network/Connect Line Result" to show the check results.

Fig 3: Display - Network/Connect Line Result Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: If there is "NG" or "N/A" as the check results, select "NG" on the "Network/Connect Line Result" screen. Then "NG code Indication" screen will show the NG code.
If "Back" is selected on "Network/Connect Line Result", the screen will return to "Unit Diagnosis" screen.

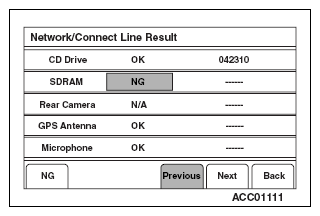

Fig 4: Selecting On Network/Connect Line Result Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
