Present Position Revision

Select "Present Position Revision" button on "Service" screen.

Fig 1: Selecting Present Position Revision Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Adjust the position, and then press "Set" button. Then adjust the direction, and then press "Set" button.

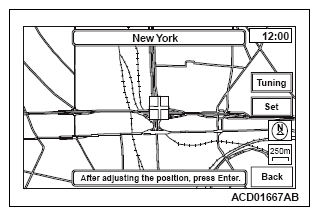

Fig 2: Pressing Set Button (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Pressing Set Button (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: If a road type must be selected, select "Highway" or "Regular Road".

Fig 4: Selecting Highway/Regular Road Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
A current location will be displayed on "Current location revised." screen.

Fig 5: Display - Current Location Revised Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
