Vehicle Signal Check

Select "VEHICLE SIGNAL CHECK " on "Unit Diagnosis" screen.

Fig 1: Display - Unit Diagnosis Screen
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
The current status of vehicle signal will be displayed.
- "Speed": "ON" when the vehicle speed is 5 km/h (3.1 mph) or more, and "OFF" when the vehicle speed is 3 km/h (1.9 mph) or less.
- "ILL": "ON" when the lighting switch is on (the tail lights or the headlights are ON), and "OFF" when the tail lights or the headlights are OFF.
- "Shift Position R": "ON" when the shift lever < M/T > or selector lever < CVT, A/T > is at R position, and "OFF" when it is at the other position.

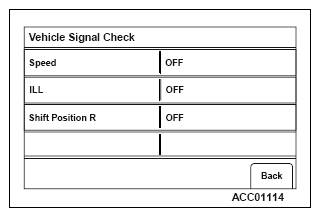

  Fig 2: Display - Vehicle Signal Check Screen
  Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
