INSPECTION PROCEDURE 7: The rain sensitive AUTO wiper function does not work at all (Vehicles with lighting control sensor) : Notes

CAUTION: Whenever ECU is replaced, ensure that the input and output signal circuits are normal.

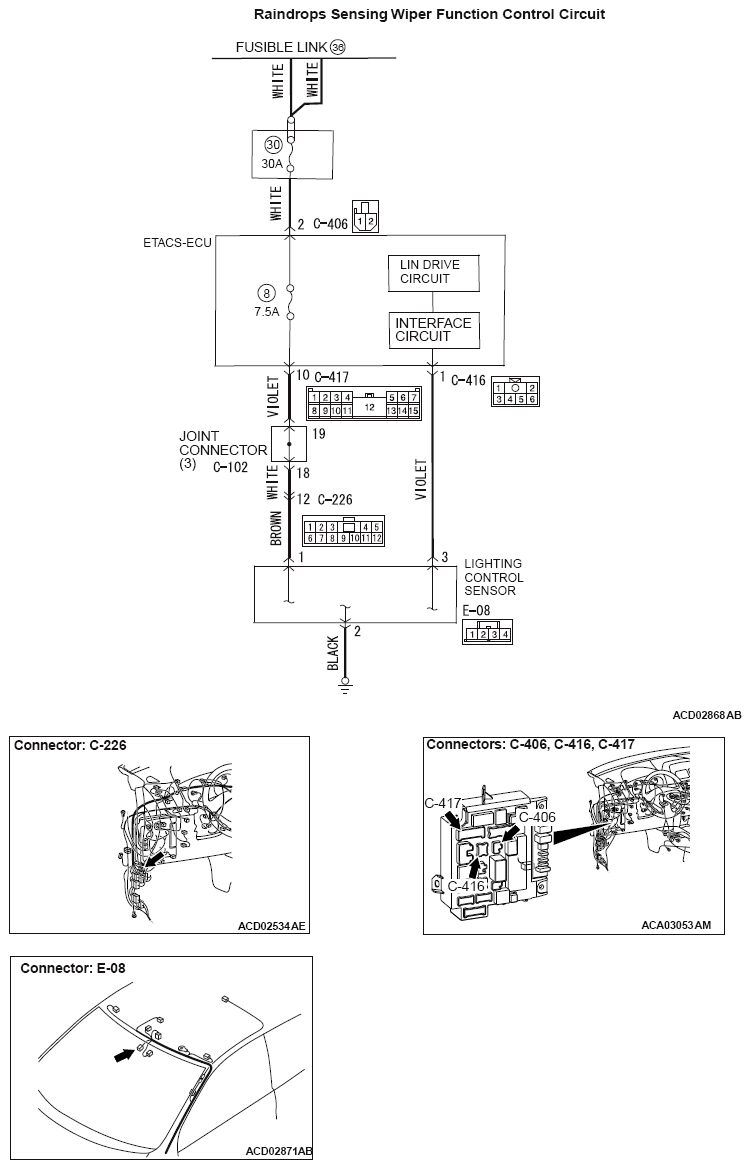

Fig 1: Raindrops Sensing Wiper Function Control Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
