Wiper Arm And Blade Assembly Installation

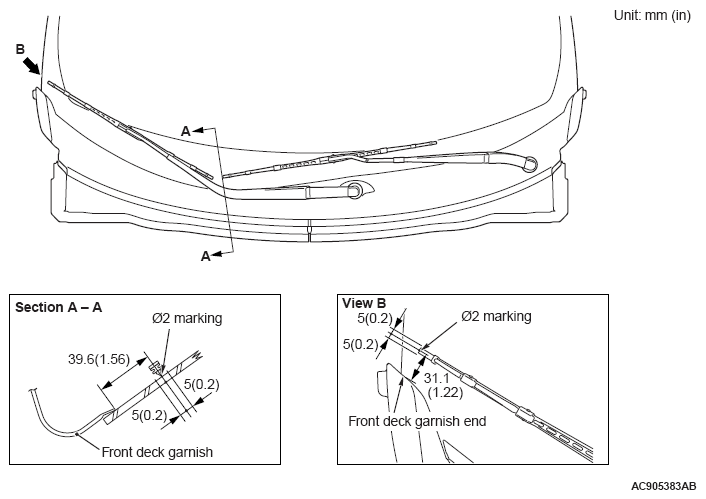

Fig 1: Identifying Wiper Arm And Blade Assembly Dimension

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Install the wiper arm and blade assembly at the specified positions.

(A): ø 2 marking ± 5 mm(0.2 in)
