Disassembly And Assembly: Notes

CAUTION:
  • As for the EBJ assembly, only the EBJ boot can be replaceable, and other parts cannot be disassembled.
  • The EBJ boot for FWD-RH is not replaceable.

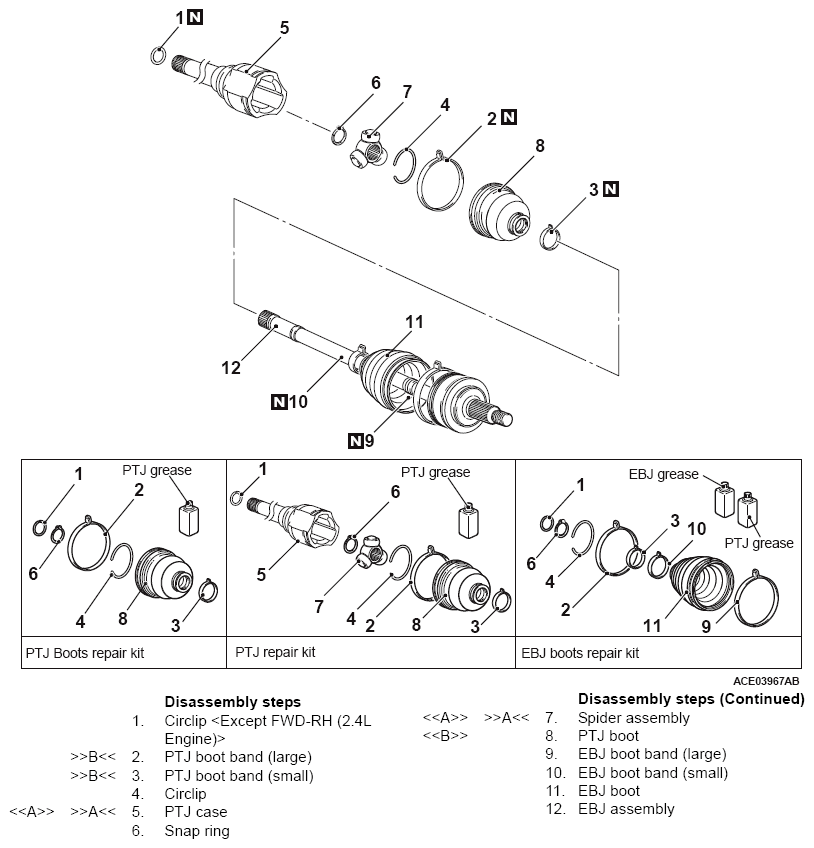

Fig 1: Disassembling/Assembling Driveshaft Assembly Components
G10230712Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
