EGR Pipe Gasket/EGR Valve Stay/EGR Equipment Stay B/EGR Equipment Stay A/EGR Pipe Gasket/EGR Valve Pipe Installation

Install each gasket with its protrusion being positioned as shown in the figure.

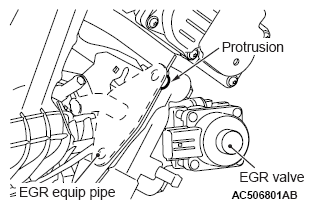

Fig 1: EGR Equip Pipe And EGR Valve Gasket With Protrusion
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

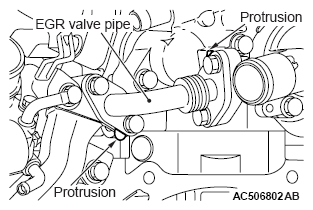

Fig 2: EGR Valve Pipe Gasket With Protrusion
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Tighten each mounting bolt to the specified torque in the order as shown in the figure.
Tightening torque: 20 ± 2 N.m (15 ± 1 ft-lb)

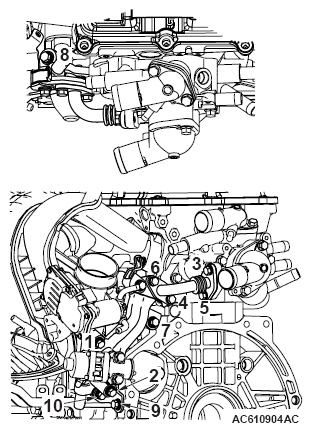

Fig 3: EGR Assembly Mounting Bolt Tightening Sequence
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
