Hands-Free Interface System <Vehicles Without MMCS>

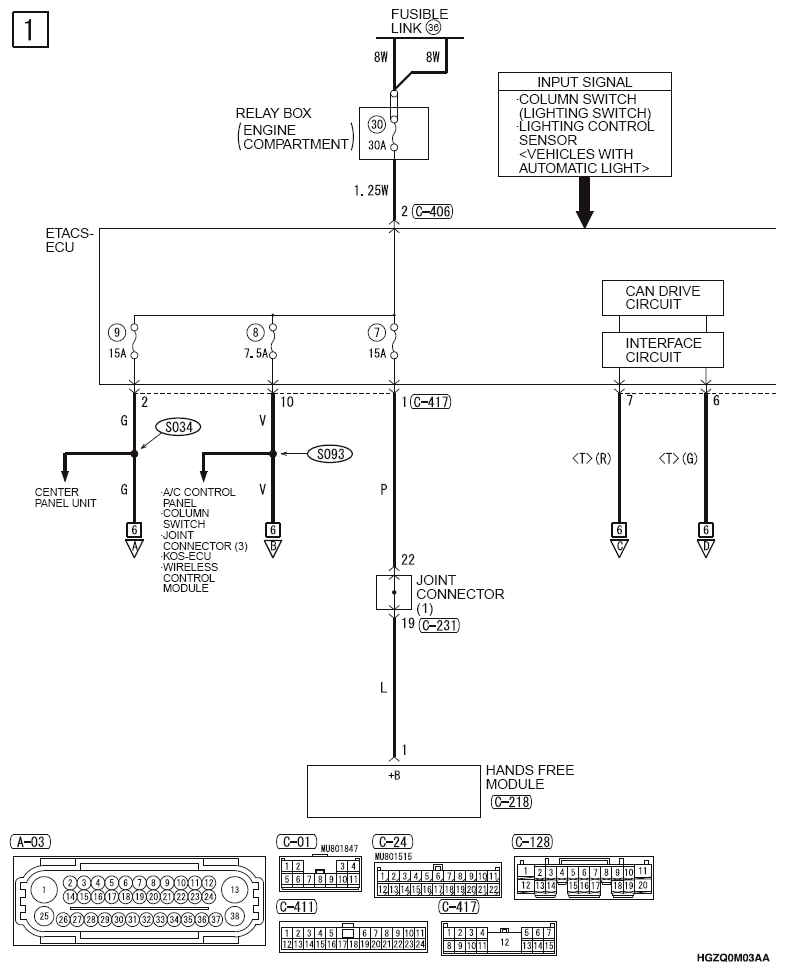

Fig 1: Hands-Free Interface System Circuit Diagram - Vehicles Without MMCS (1 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

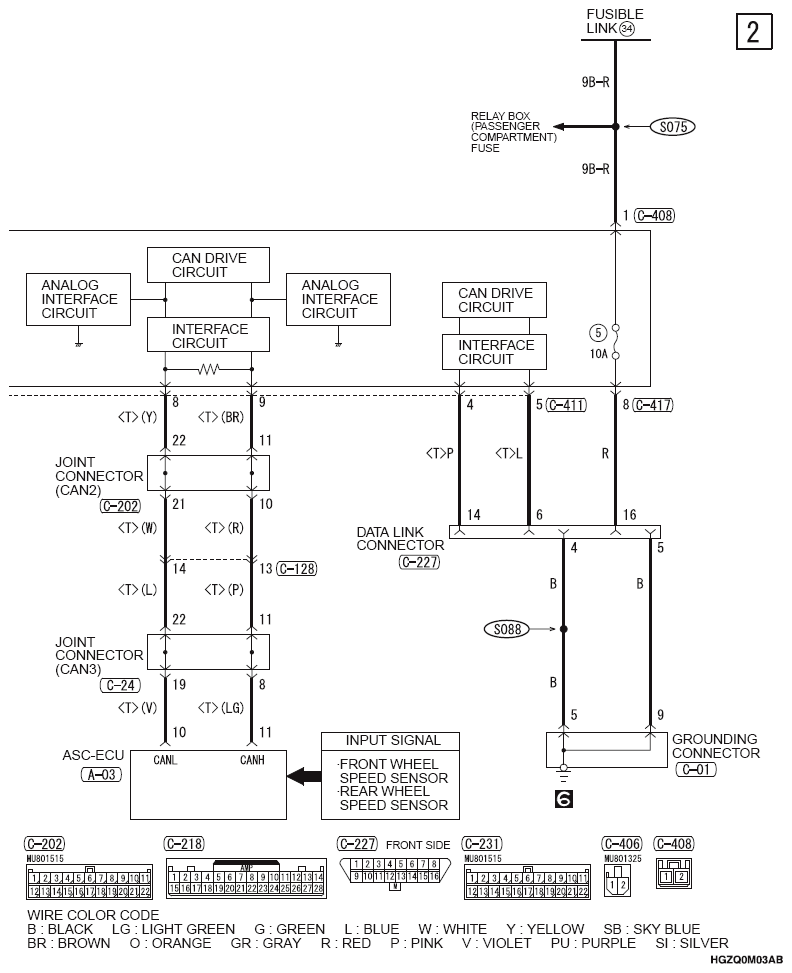

Fig 2: Hands-Free Interface System Circuit Diagram - Vehicles Without MMCS (2 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

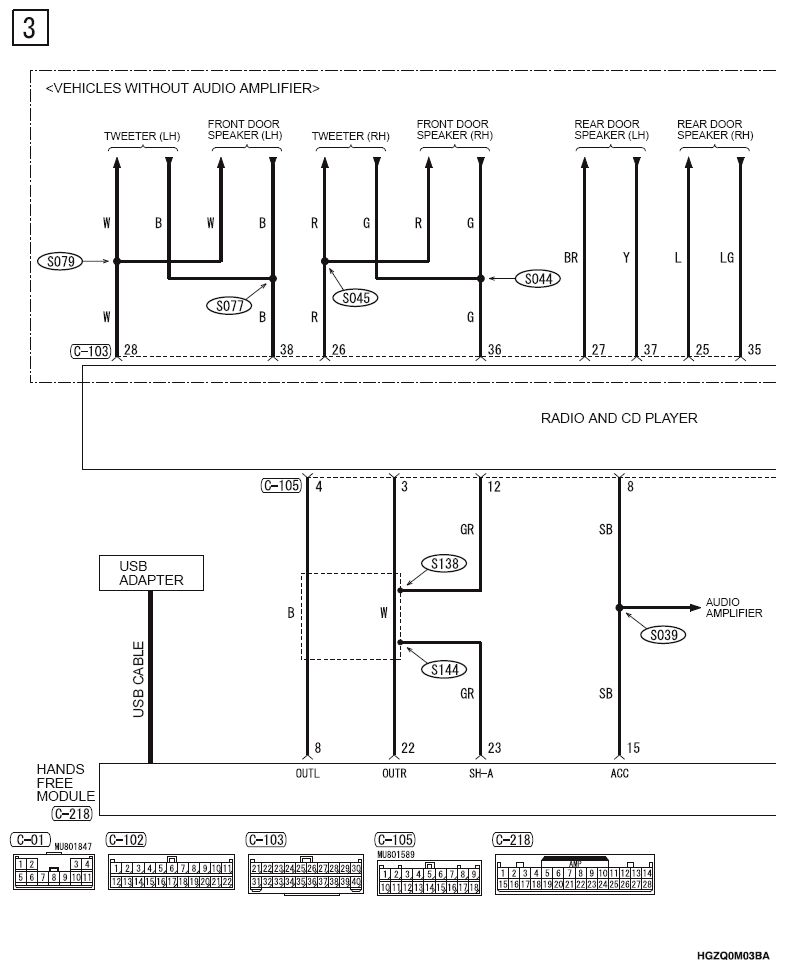

Fig 3: Hands-Free Interface System Circuit Diagram - Vehicles Without MMCS (3 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

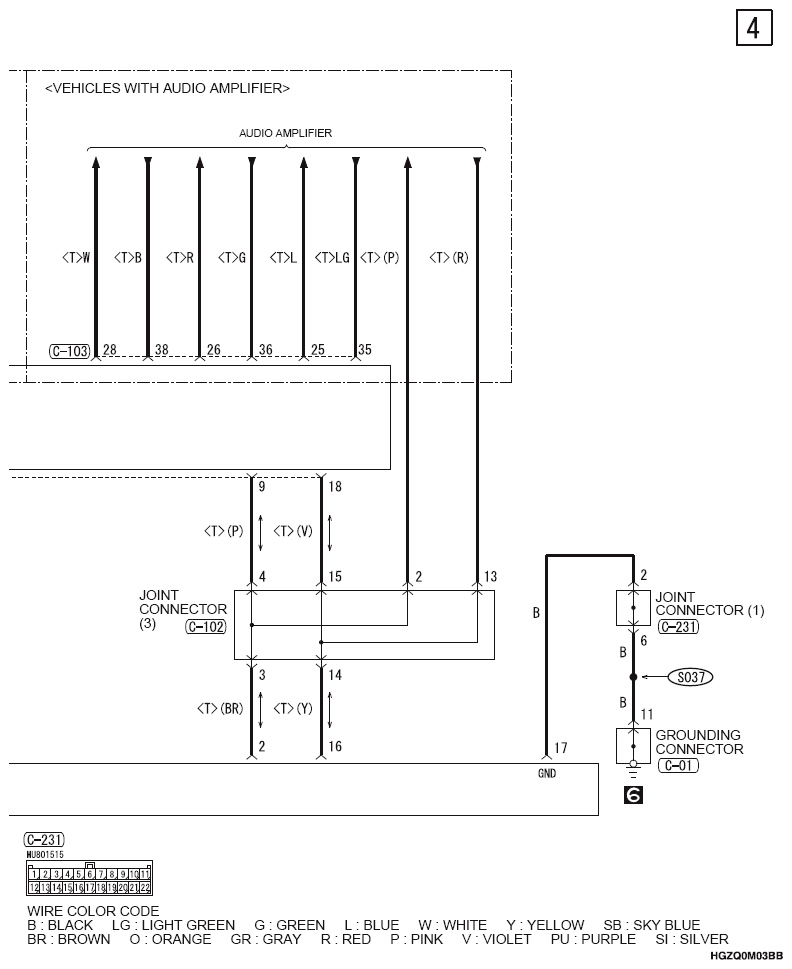

Fig 4: Hands-Free Interface System Circuit Diagram - Vehicles Without MMCS (4 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

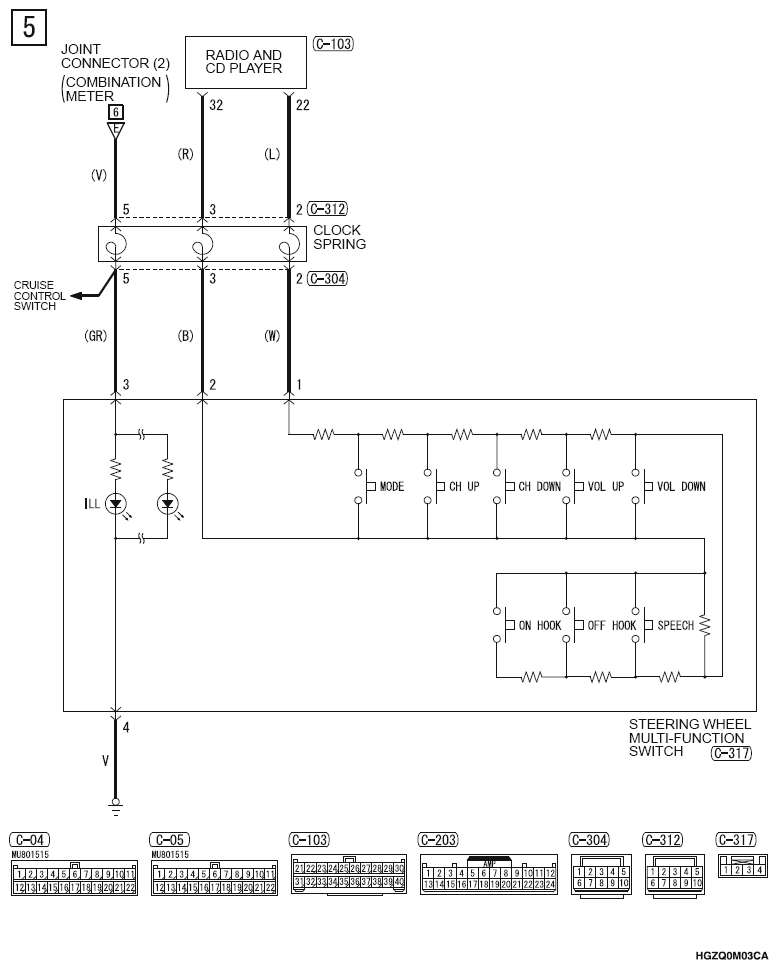

Fig 5: Hands-Free Interface System Circuit Diagram - Vehicles Without MMCS (5 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

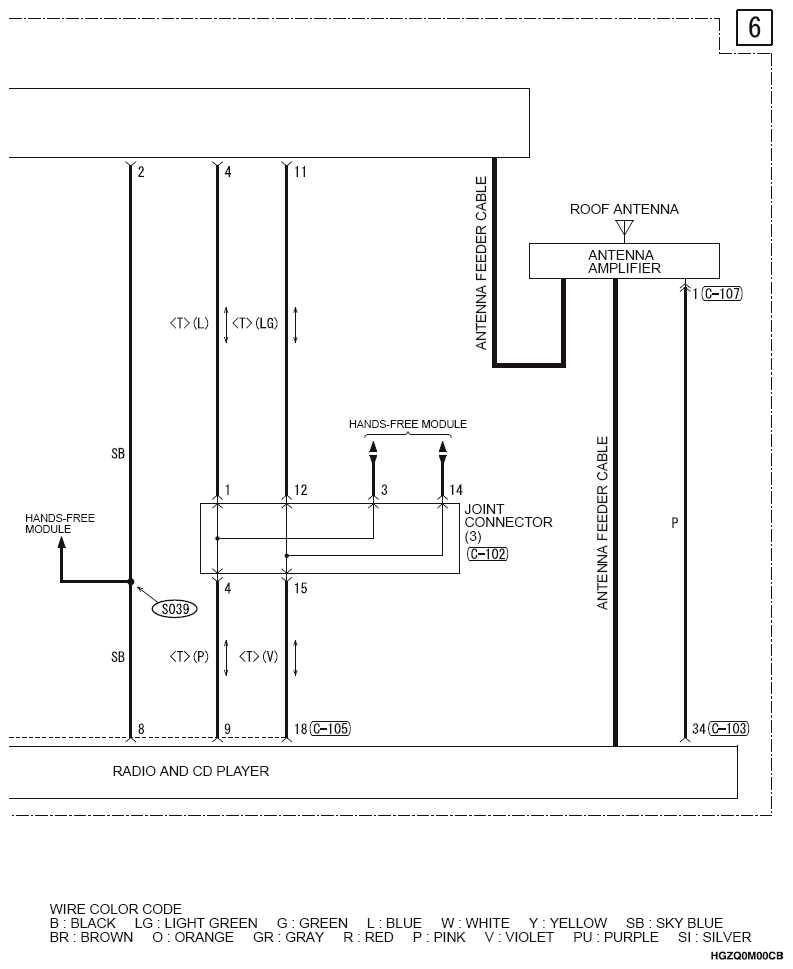

Fig 6: Hands-Free Interface System Circuit Diagram - Vehicles Without MMCS (6 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

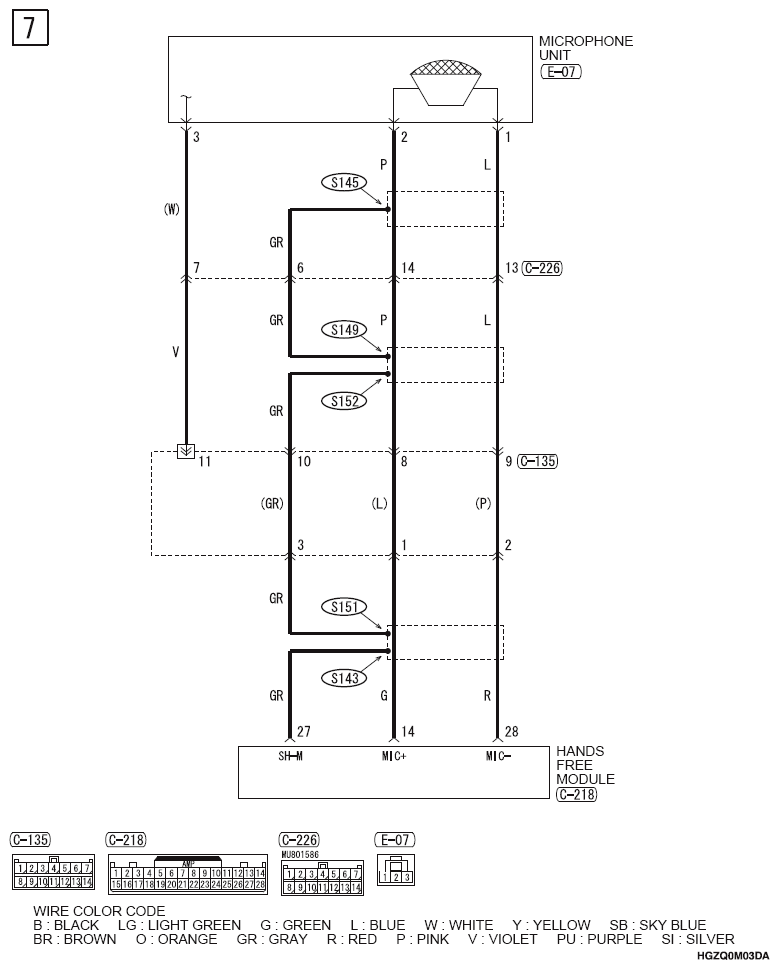

Fig 7: Hands-Free Interface System Circuit Diagram - Vehicles Without MMCS (7 Of 7)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
