MITSUBISHI Multi-Communication System (MMCS)

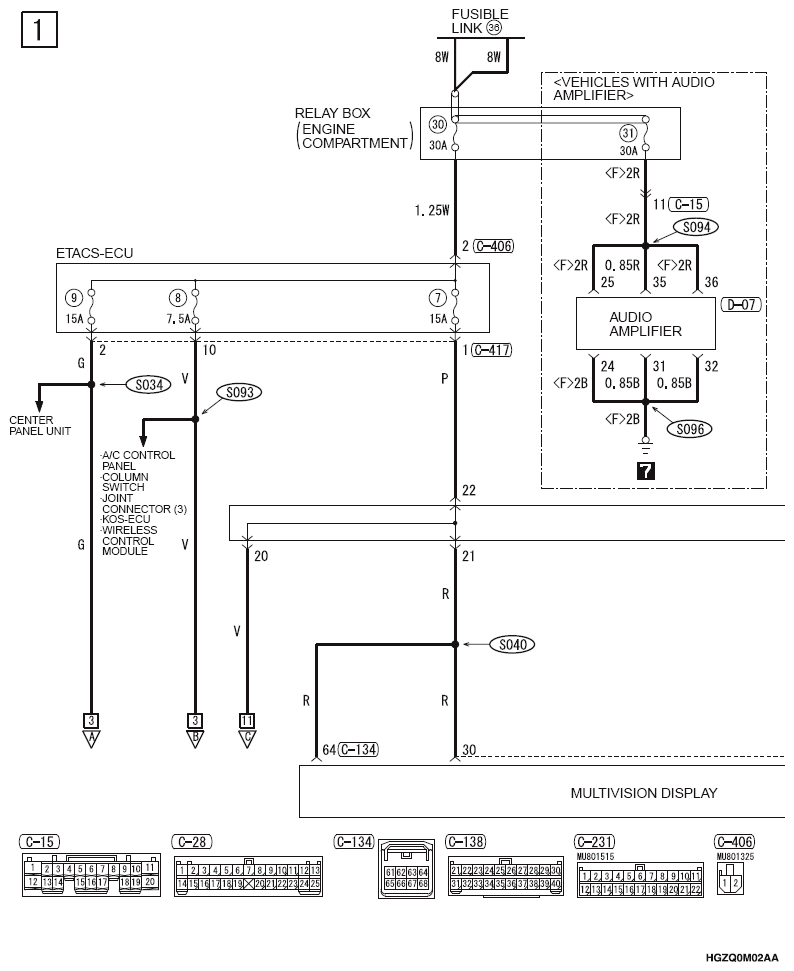

Fig 1: Mitsubishi Multi-Communication System Circuit Diagram (1 Of 13)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

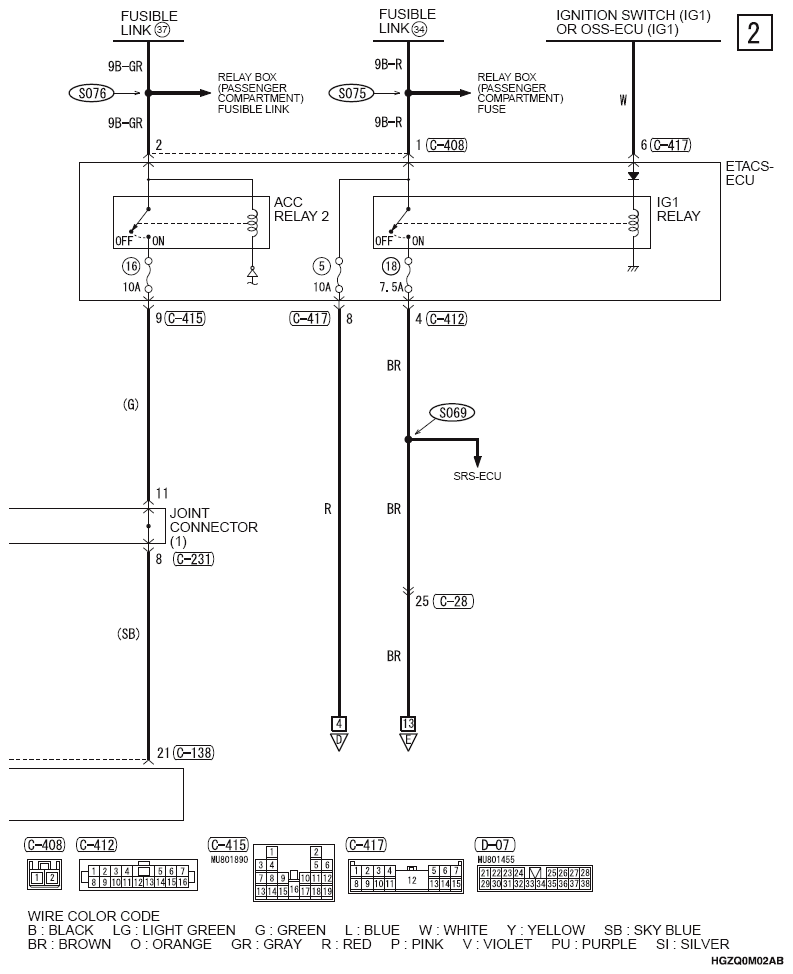

Fig 2: Mitsubishi Multi-Communication System Circuit Diagram (2 Of 13)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

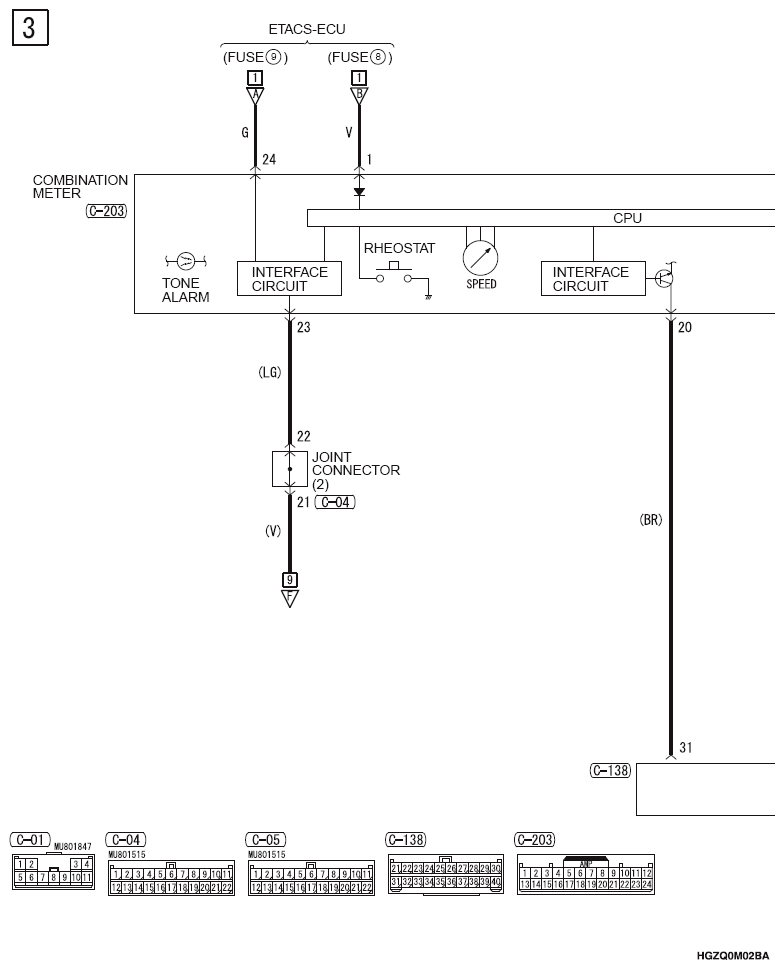

Fig 3: Mitsubishi Multi-Communication System Circuit Diagram (3 Of 13)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

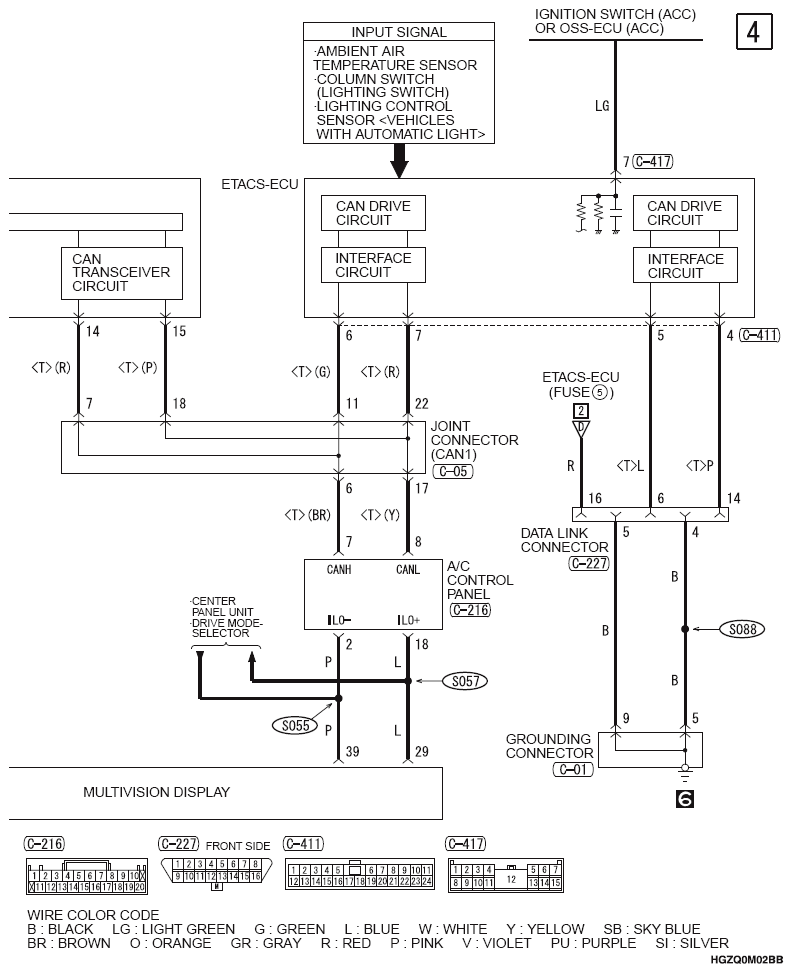

Fig 4: Mitsubishi Multi-Communication System Circuit Diagram (4 Of 13)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

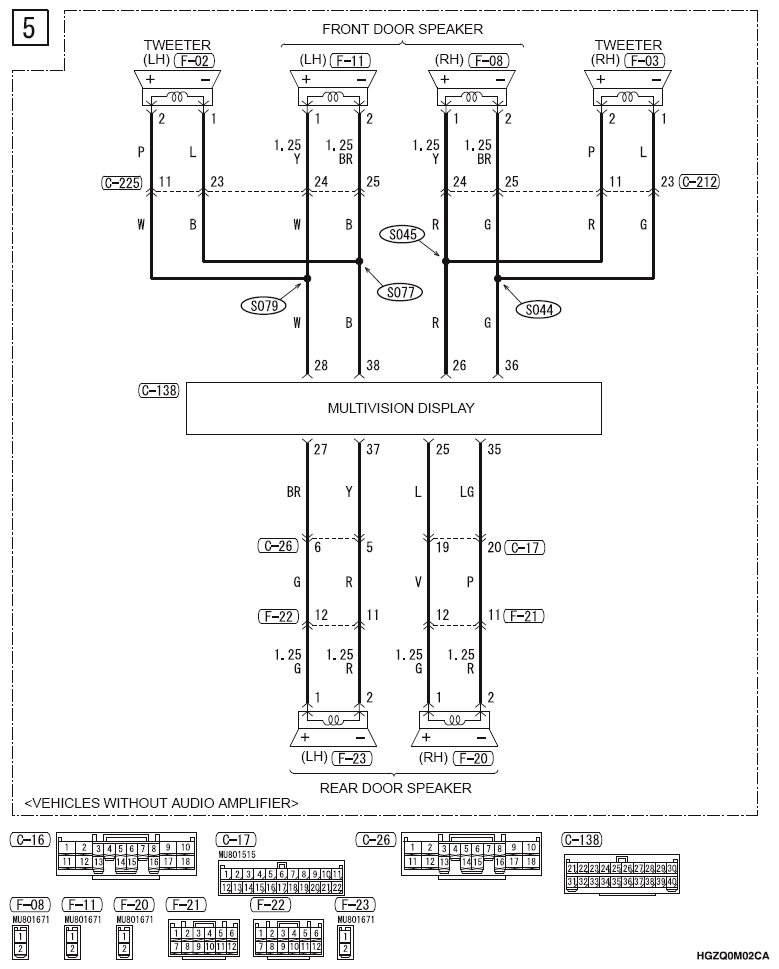

Fig 5: Mitsubishi Multi-Communication System Circuit Diagram (5 Of 13)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

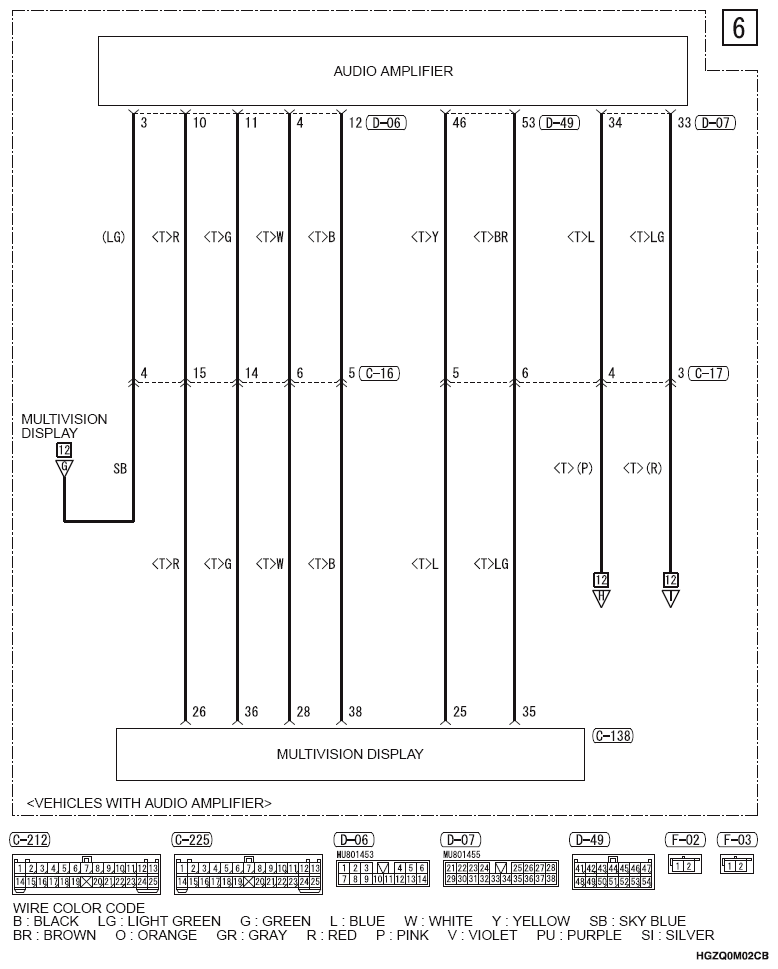

Fig 6: Mitsubishi Multi-Communication System Circuit Diagram (6 Of 13)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

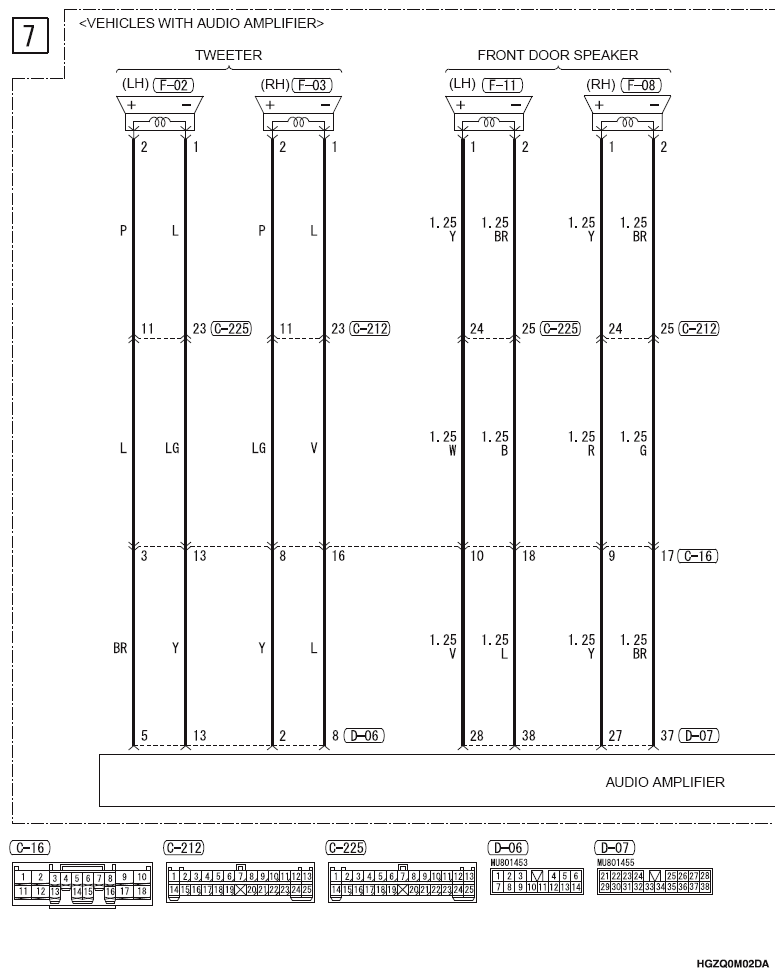

Fig 7: Mitsubishi Multi-Communication System Circuit Diagram (7 Of 13)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

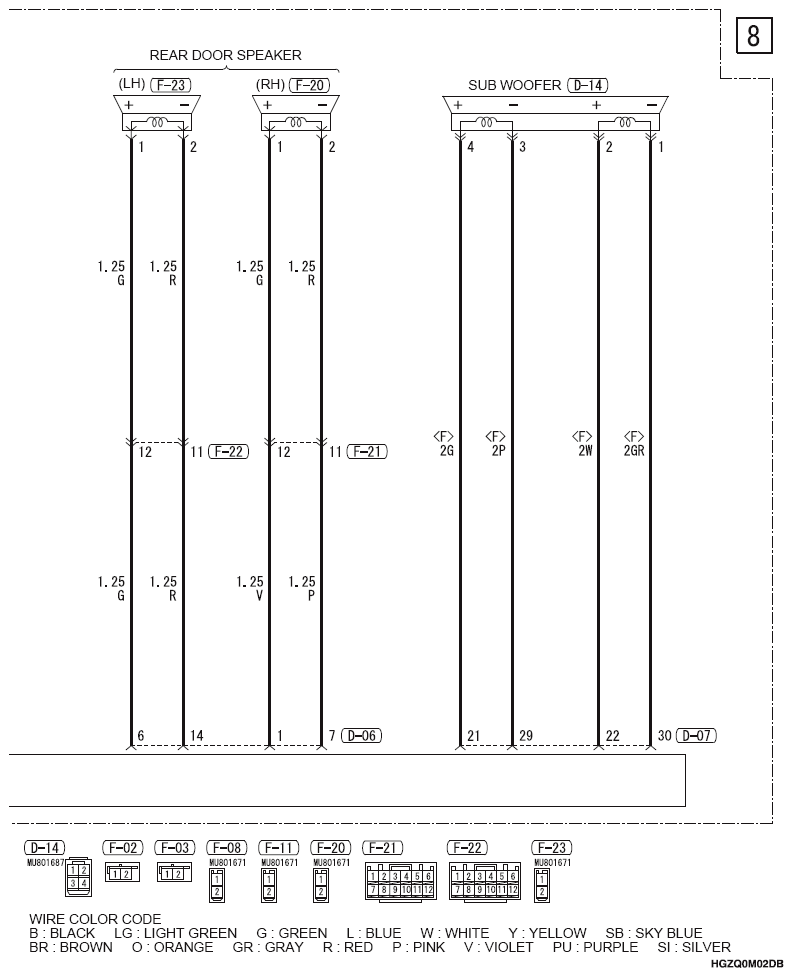

Fig 8: Mitsubishi Multi-Communication System Circuit Diagram (8 Of 13)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

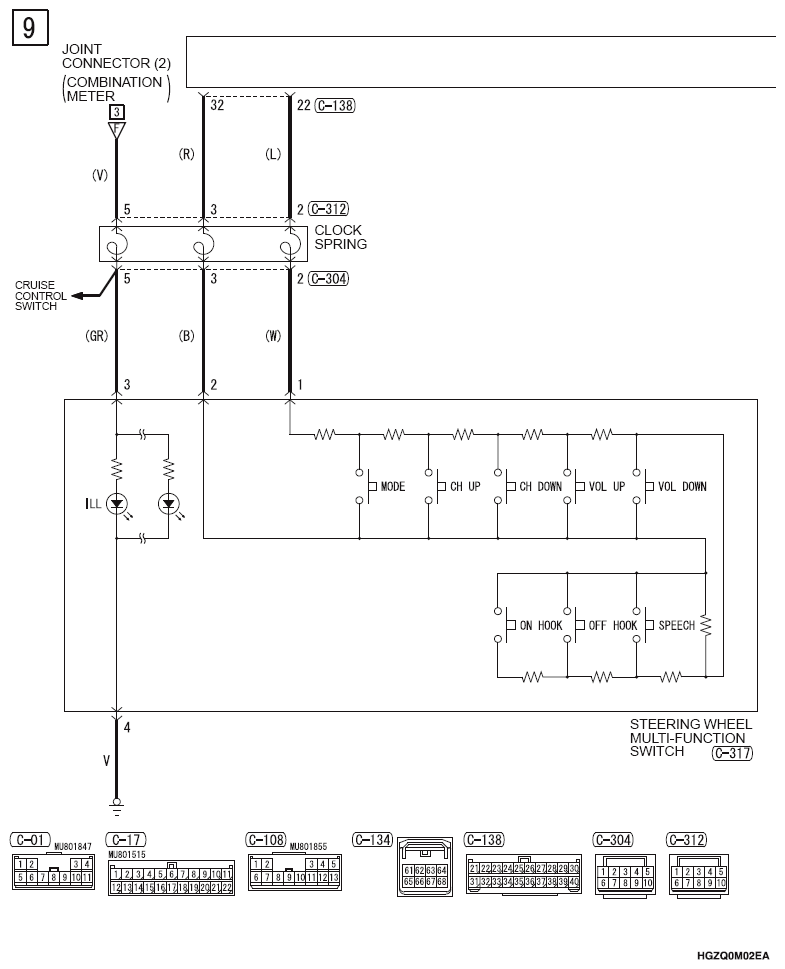

Fig 9: Mitsubishi Multi-Communication System Circuit Diagram (9 Of 13)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

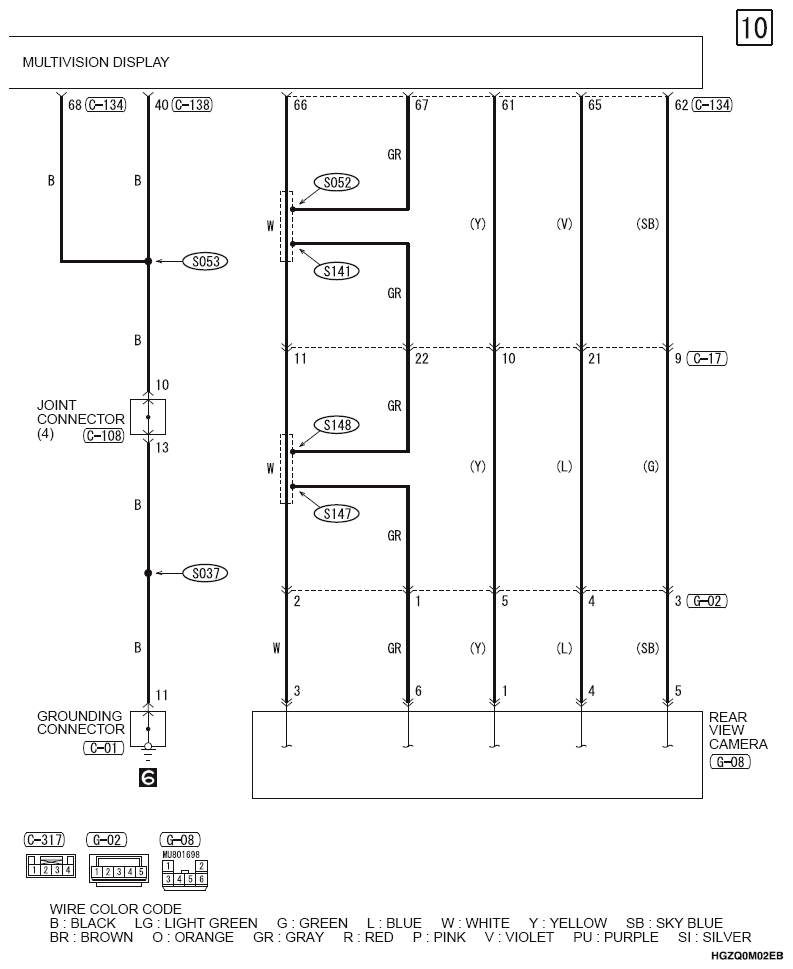

Fig 10: Mitsubishi Multi-Communication System Circuit Diagram (10 Of 13)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

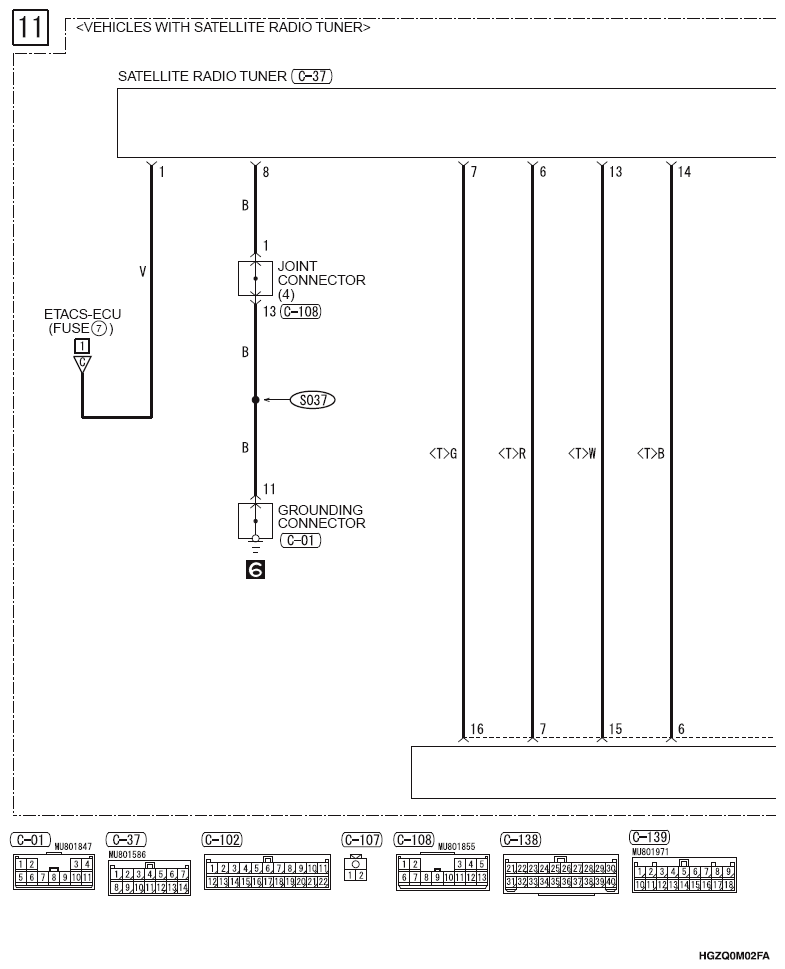

Fig 11: Mitsubishi Multi-Communication System Circuit Diagram (11 Of 13)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

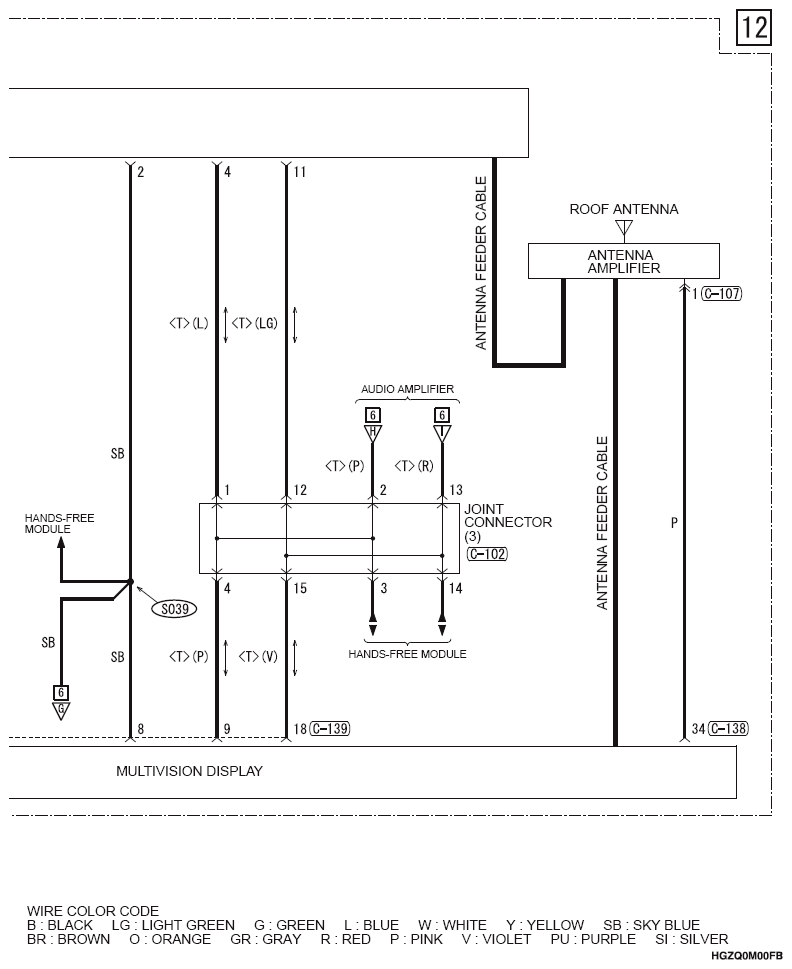

Fig 12: Mitsubishi Multi-Communication System Circuit Diagram (12 Of 13)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

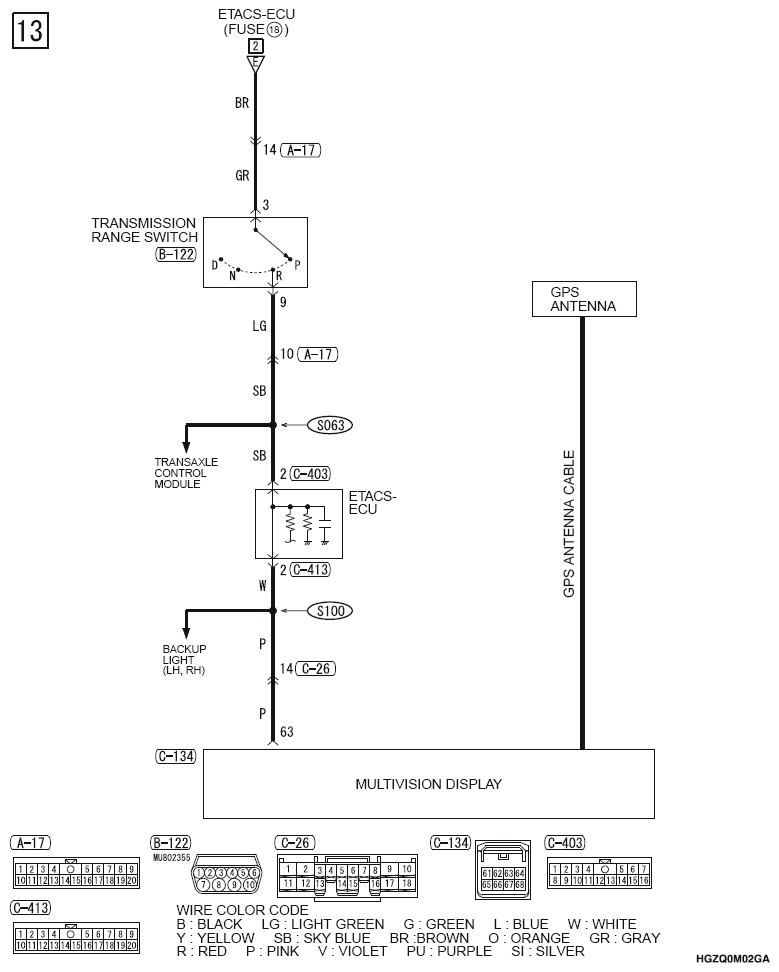

Fig 13: Mitsubishi Multi-Communication System Circuit Diagram (13 Of 13)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
